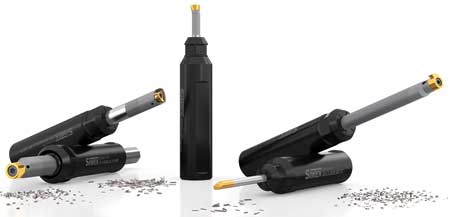

New range of length-adjustable clamps and carrier tools from SIMTEK.

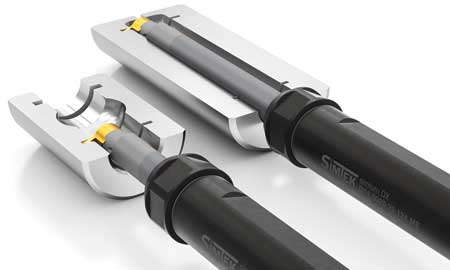

The simturn DX clamping holders with steel round shank for the internal machining of small components can be used in variable lengths. Due to the friction-locked ME clamping system, the internal carbide carrier tool is clamped securely.

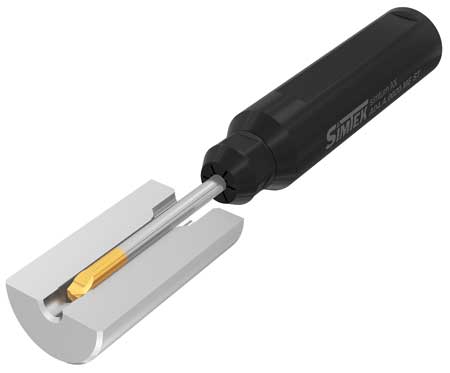

Length-adjustable simturn PX cutting inserts

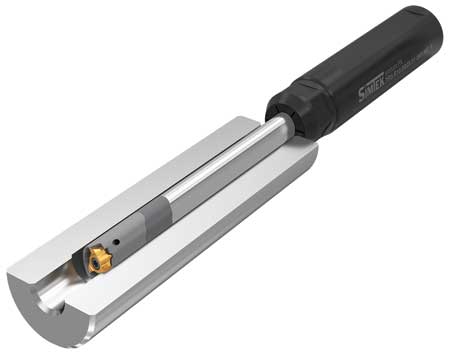

Length-adjustable simturn AX cutting inserts

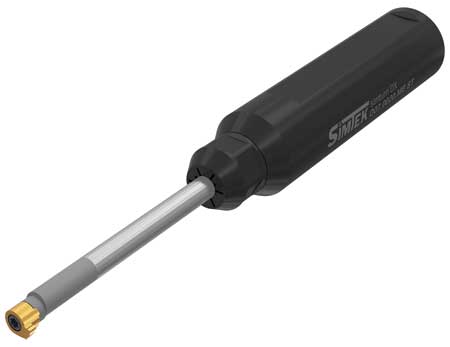

Length-adjustable simturn DX cutting inserts
SIMTEK offers a range of adjustable-length clamping holders. This includes the simturn DX clamp holders with length adjustability and ME clamping principle, the simturn PX carrier tool solution for internal machining and the simturn AX range for boring holes.
These versatile simturn DX clamp holders offer an improved solution for internal machining, can be precisely and continuously adjusted in length and are particularly suited for use in small series production, according to SIMTEK. Due to their length adjustability, they can be flexibly adapted to the machining of a wide variety of components. Available in sizes D07 (lengths from 20.0 mm to 55.0 mm), D10 (lengths from 31.0 mm to 87.5 mm) and D14 (lengths from 42.0 mm to 124.0 mm), these holders cover lengths from 20.0 mm to 124.0 mm. SIMTEK's ME clamping principle offers increased stability and precision so they can be adapted to the respective requirements.
"With the new clamping holders, we can significantly reduce the need for our users to purchase new tools at the start of a new component series," said SIMTEK CEO Norbert Seifermann. "To meet the specific requirements of internal machining even better, length-adjustable simturn PX carrier tool solutions are now available. These tools are particularly suitable for the precise boring of holes from a diameter of O 10.5 mm and, with a three-edged tool system, offer an optimum combination of cost efficiency, stability and flexibility. The ability to react quickly and cost-effectively to new requirements in metalworking is becoming increasingly important. With the new length-adjustable tools, we can offer this agility."
Within the simturn AX product group, SIMTEK is also launching a length-adjustable solution for boring holes from O 47 mm. Due to the ME clamping principle, the usable length of the cutting inserts can be continuously and precisely adapted to the respective requirements, which increases efficiency and productivity in production.
For more information contact:
SIMTEK USA Inc.
13 Fairfield Ave., Ste. 104
Little Falls, NJ 07424
862-757-8130
usa@simtek.com
www.simtek.com
