Replaceable Head Reamers for High-Production Machining

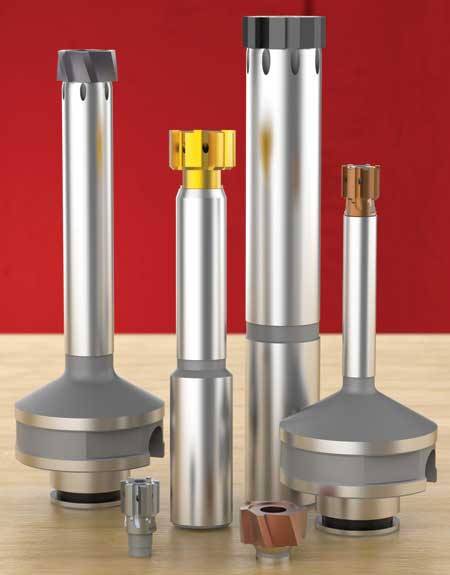

Allied Machine and Engineering announced the expansion of ALVAN reaming products by SCAMI with the 5000 series and 9000 series reamers. These replaceable head reamers offer a solution for high-production environments in industries such as automotive, heavy equipment, agriculture, firearms and hydraulics where tight tolerances and extreme surface finishes are required. With carbide and cermet grades as well as multiple coatings and geometries, these two series of ALVAN reamers are suited for applications in all materials.

Features of the 9000 series include:

• Diameter range: 11.80 mm to 40.60 mm
• Capable of H7 hole tolerances
• Available with modular and cylindrical shanks-short and long length
• Sintered carbide/cermet design allows for potential increased tool life/penetration rates
• Heads are finish ground to the desired diameter at SCAMI
• Quick-change connection between the head and mandrel for reduced machine downtime in high-production settings.

The 5000 series ALVAN reamers are suited for applications with holes requiring tight tolerances where minimizing operator intervention is critical.

"Setting up reamers and achieving optimal results often requires a high level of operator skill level, but with the 5000 series, the diameter setting is done by SCAMI prior to shipment, making it ready to use as soon as it is received," said a company spokesperson. "It also allows for quicker tool changes when the head is worn and needs to be replaced with a new one."

Features of the 5000 series include:

• Diameter range: 9.60 mm to 32.60 mm
• Expandable diameter capabilities for wear compensation
• Available with modular and cylindrical shanks-short and long length
• Repeatable twist-locking design of the head onto the mandrel for reduced machine downtime between head changes
• Enhanced TIR repeatability from head-to-head changes.

Natalie Givler, Product Manager of the hole finishing product lines at Allied Machine, said: "With high-production tools like reamers, minimizing machine downtime is critical. These additional ALVAN reaming products by SCAMI provide an easy-to-use assembly method, which simplifies the set-up process and lowers the risk of scrapped parts."

For more information contact:

Allied Machine & Engineering Corp.

120 Deeds Drive

Dover, OH 44622

330-343-4283

info@alliedmachine.com

www.alliedmachine.com
