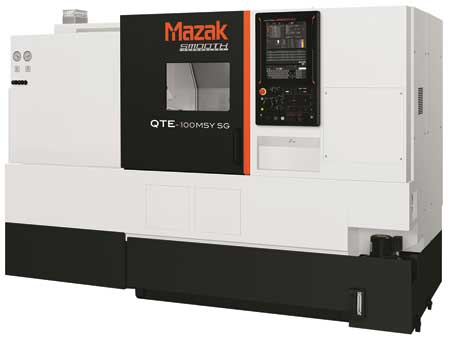

Mazak's QTE-100MSY Multi-Tasking Machine, equipped with a gantry loader, performs automated DONE IN ONE single set-up part machining.
With its MSY configuration, the QTE-100MSY offers versatility for efficiently processing a wide range of parts. The machine features milling capability (M) and Y-axis functionality (Y) as well as a second turning spindle (S). The main 6,000-RPM, 20-HP turning spindle is outfitted with a standard 6" through-hole chuck package and a 1.77" through-hole, while the machine's 6,000-RPM, 10-HP second spindle has a 5" chuck.
Mazak's integral headstock design incorporated into the QTE-100MSY eliminates belts and pulleys, which reduces maintenance while increasing part quality. Shops achieve higher accuracies and less vibration for generating exceptional part surface finishes, the company reported.
For off-centerline milling, the Y-axis on the QTE-100MSY provides +/- 2.0" of travel. A 4,500-RPM, 7-HP rotary tool spindle in the machine's 12-tool upper turret together with 0.0001" incremental C-axis positioning allows for full contouring capability.
Mazak's SmoothEz CNC on the QTE-100MSY lets users program with either MAZATROL conversational or EIA/ISO G-code programming as standard. For automated applications, Mazak will outfit the machine with various options, such as automatic door, bar feeder, parts catcher and gantry loader.
