Modular Inverted Vertical Gear Cutting System with SCUDDING Technology

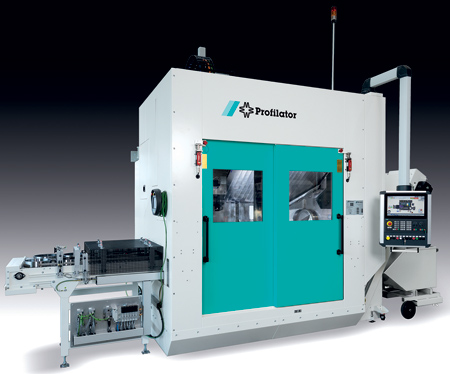

Profilator 300-V

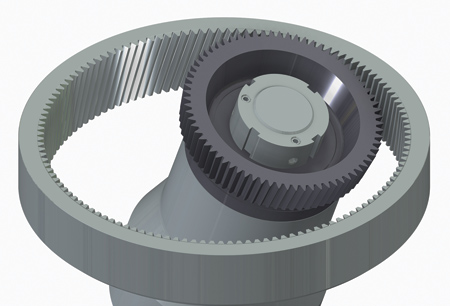

SCUDDING of internal gear

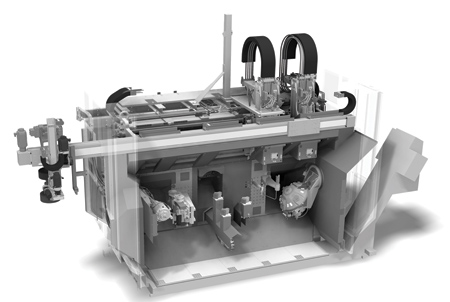

Inside view of the Profilator 300-V

German Machine Tools of America (GMTA) is now selling Profilator 300-V with linear drives in the North American market.

This modular machine platform used to cut gears is equipped with one or two workpiece spindles in a compact design. It offers maximum flexibility due to modular design and is individually configurable for various machining processes (i.e. SCUDDING, hobbing, cycloidal milling, pointing, chamfering and deburring). State-of-the-art linear drives in the X- and Y-axis, as well as a torque drive in the A-axis, offers high machine dynamics for short cycle times and maximum accuracy/low costs. High machine rigidity is available for HARD SCUDDING of inner and outer diameters.

Additional features include an intuitive user interface for easy set-up and programming and is industry 4.0 ready (optionally equipped with additional sensors). Various automation concepts are adaptable. The 300-V is easy to set up and maintain due to the walk-in machining area. An optional tool charger is available for maximum machining efficiency.

All Profilator machines are designed for dry machining. This brings several advantages, such as an optimized machining area, no coolant and no coolant mist. The inverted, vertical spindle(s) allow free chip fall into the central chip conveyor at the bottom, while no coolant means no washing of the workpiece is required and the lack of coolant mist signifies an extraction system is not needed.

For more information contact:

German Machine Tools of America

4630 Freedom Drive

Ann Arbor, MI 48108

734-973-7800

sales@gmtamerica.com

www.gmtamerica.com
