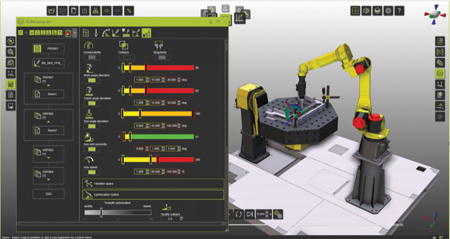

Automated path optimization using FASTSUITE E2
Weld Cockpit functions in FASTSUITE E2
CENIT's FASTSUITE E2 release 2023.2 features 28 new functions and enhancements as well as three major highlights: Automated AI-based path optimization, automated seam searches plus efficient planning of welding operations via the Weld Cockpit. Together, these features make FASTSUITE E2 a key tool for process optimization and cost effectiveness in robot welding applications, the company reported.
"Release 2023.2 of the 3D simulation software FASTSUITE E2 is the next big step in CENIT's approach to promoting sustainable digitalization in industrial manufacturing," said a company spokesperson. "The upgrade features 28 high-performance tech innovations for simulation and programming. CENIT's developers leverage AI-based functions to support manufacturing processes and boost efficiency, resource economy and quality in production."
Jens Fetzer, Vice President Product Strategy, CENIT AG, said, "In this stage of our journey to autonomous offline programming, we have implemented a wide range of new features that deliver automatic optimization effects and significantly accelerate offline programming. They virtually eliminate time-consuming, manual fine-tuning of manufacturing operations."
The release focuses on three specific technology bundles:
- Efficient planning of welding paths
- AI-based offline programming (OLP) and automatic path optimization
- Sensor functions for seam identification and seam tracing.
OLP with Automated Path Optimization
This feature offers manufacturing businesses a leg up in autonomous programming of robot welding operations. The function relies on AI algorithms to automatically generate robot paths and analyze them to identify issues like collisions, axis limits, singularities, etc. The algorithm then searches for optimal solutions and automatically generates error-free programs. No more time-intensive manual correction and reprogramming efforts.
"The features not only save time and money, they also boost productivity: optimized paths mean that the robots move more smoothly and efficiently during their welding operations, which shortens overall cycle times," said the spokesperson.
According to Fetzer, "Depending on the complexity of the components, businesses that introduce autonomous offline programming and path optimization can reduce their programming times by 50 to 80%."
Automatic Seam Identification and Tracing
This function is again aimed at enhancing entire workflows: simulation and programming plus seam identification and seam tracing functions enable automated generation and optimization of robot welding paths. The robot programs are able to self-adjust so as to account for geometry deviations within the components and clamping arrangements, again reducing the need for manual reworking of the robot cell.
"In real-world welding applications, workpieces often vary slightly in terms of dimensions and position tolerance, especially when the components are tacked manually. Because FASTSUITE helps the robot adapt to these deviations, we achieve highly reliable welding results and avoid manual intervention," said Fetzer.
The Weld Cockpit
This function enables precise and consistent planning of welding processes and helps ensure reliable, replicable results. The Weld Cockpit lets the user insert welding symbols to define the intended welding path, or transfer a welding path directly from a 3D master model. It also supports standardized transfer of tooling information from production drawings to OLP processes.
The Weld Cockpit lets us translate the complex world of offline programming into the language familiar to the welding experts," Fetzer explained.
Standardization and the use of recognized welding symbols and standards make the Cockpit a valuable aid in ensuring consistency and reliability. Automated parameter assignment produces uniform results and better quality because it largely eliminates human misinterpretation of welding symbols, errors in welding path definition and incorrect assignment of process parameters.
In upcoming FASTSUITE E2 releases, CENIT will take the next steps on its course toward autonomous programming and the goal of maximizing the benefits of industrial robots.
