Heavy-Duty Solid End Milling
February 1, 2024

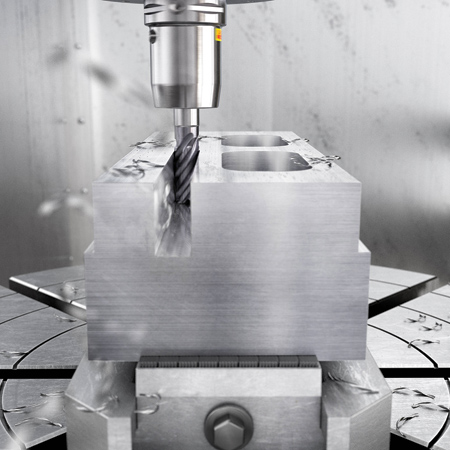

Sandvik Coromant has expanded its offering of CoroMill Plura HD solid end mills for heavy-duty roughing in steel and stainless steel with two additional grades. These grades feature the Zertivo 2.0 coating, which is designed to provide increased productivity, metal removal rate and process security.
CoroMill Plura HD is Sandvik Coromant's optimized solution for heavy-duty applications up to 2xD in steel and stainless steel (ISO P and ISO M), offering safe and efficient solid end milling. The Zertivo 2.0-coated grade further improves tool life, process security and productivity.
"With Zertivo 2.0, we are applying our comprehensive knowledge in coating technologies to our solid round tools," said Antti Wikström, Global Product Manager, Solid End Mills, at Sandvik Coromant. "This gives us an opportunity to offer unique, custom-made coatings that can handle our customers' machining challenges with superior performance and tooling efficiency."
The new grades enable a 30% increase in cutting speed recommendations for the primary ISO P and ISO M application areas, as well as secondary ISO K and ISO S materials, due to their optimized flute shape, which offers effective chip evacuation, the company reported. The grades designed for stainless steel machining come in two variants: one with internal coolant for improved temperature control and chip flow and one without internal coolant.
The standard assortment offers diameters from 2-25 mm, a 2xD depth of cut, 4 to 5 teeth and a ramping angle of 5° or 7°. Tailor Made options are available within the Customized Solutions range.
For more information contact:
Sandvik Coromant
295 Maple Lane
Mebane, NC 27302
800-SANDVIK
coromant.us@sandvik.com
www.sandvik.coromant.com
