Cheaper and faster bending of large tubes with the "t bend" tube bending technology from transfluid.

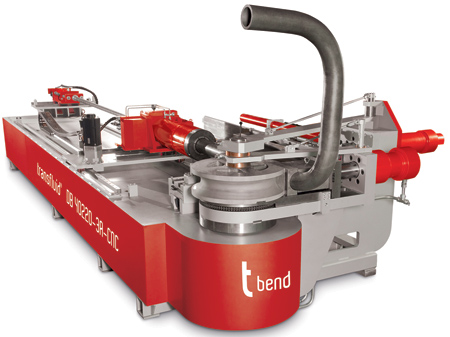

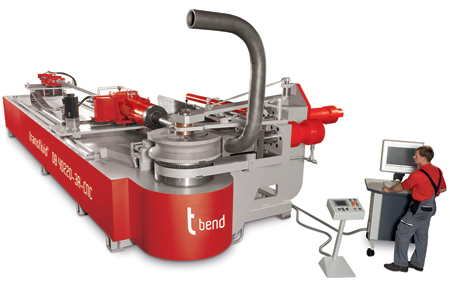

transfluid's DB 40220-3A-CNC "t bend" tube bending machine provides high performance processing of tube between 40 and 220 mm.

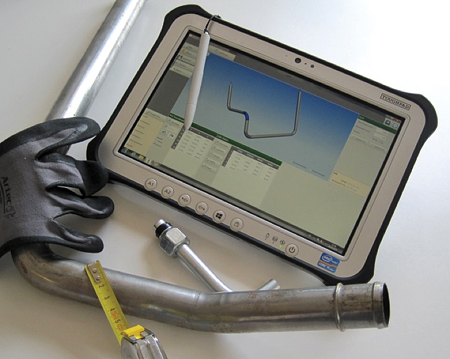

As the mobile version, "t project Draft" contributes to more time-efficient and more flexible tube manufacturing.

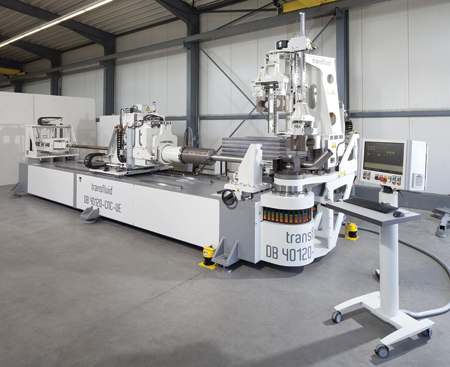

The pipe bending machine DB 40120-CNC-VE by transfluid changes tools automatically.
Digital solutions are required by the international shipbuilding and off-shore industry for efficient planning of their resources and processes. To support that, machine manufacturer transfluid combined its bending technologies for large diameter tubes with online networking aimed at practical applications, as with the "t project" software calculating beforehand the exact orientation of the flanges, when bending straight tubes with welded flanges. Mobile measuring tools acquire data on-site, for instance in order to measure template tubes accurately. In addition to that, transfluid offers the option of tube end-forming processes with the rotary tube forming UMR "t form" machine. For instance, it is possible to introduce flared flanges economically and subsequently bend the tube.
Bending Tubes with a Diameter of up to 400 mm Faster
"Saving time and money are aspects that we make possible for this industry, when it comes to tube processing," said transfluid Maschinenbau GmbH Director Stefanie Flaeper. "Our t bend CNC bending machine replaced the need to weld bends onto large tubes a long time ago, as it lowers the production costs." In addition to that, the bending systems save up to 60% of the production time for tubes with a diameter up to 400 mm. The fast setting-up of the machine, at times in less than 10 minutes, also plays a crucial role. Equipped with a fully automated CNC control system, the transfluid units can process tubes with thin and thick walls and made of any material, even with radii of 1.5 x tube diameter or more. These tight bending radii are achieved with minimal thinning of the tube walls. This leads to benefits also in terms of space on board the ship.
Better Bending of Tubes with Flanges
It is possible to achieve much simpler and much cheaper tube processing when the flanges are welded onto the straight tube beforehand, because the welding process is considerably faster at that stage. With the internal connection to the CAD programs, the t project bending software can process the isometrics immediately. Flanges can be chosen from a database and integrated in the isometrics, also in terms of bending technology. "With the directional bending of the flanged tubes our solution is able to improve the flexibility of the manufacturing. The processes clearly become simpler," explained Flaeper.
t project for Mobile Use on Board
The tablet version of the "t project Draft" software offers greater freedom for on-site practical applications. It allows the user to acquire data with a very light, portable measuring system. It is thus possible to collect data, for instance for connector tubes, for both the geometries of the process, as well as the flanges and the position of the flanges. Time savings are particularly significant for this aspect. The process of measuring on board only requires a few minutes, even for more complex tubes with flanges. All the data is acquired digitally, documented and the data can be transferred online and be available to the technical office, as well as the bending machine. Once a tube-part has been completed, it can be measured once again, in order to guarantee a smooth installation. An additional time benefit: while tubes are processed with the measurement data that was provided, further measurements can be taken on board.
Effective Forming of Tube Ends
A key aspect of tube processing in the shipbuilding industry is the forming of tube ends, like the forming of flared flanges on the tubes. With the rolling UMR t form machine it is possible to shape tubes with diameters up to 325 mm. Almost tool-independent, it uses a controlled shaping cone, which can be programmed freely during the task. Another interesting shaping option is the cylindrical expansion of tube ends, in order to connect two tubes. The transfluid solution to this challenge is suitable for tubes with a nominal size up to 250. The traditional practice in shipbuilding of welding with two seams on each connection sleeve for large nominal sizes is now redundant.
