All-Electric Tube End Forming Line of Machines

R&B Machining, Inc. offers a line of all-electric tube end forming machines.

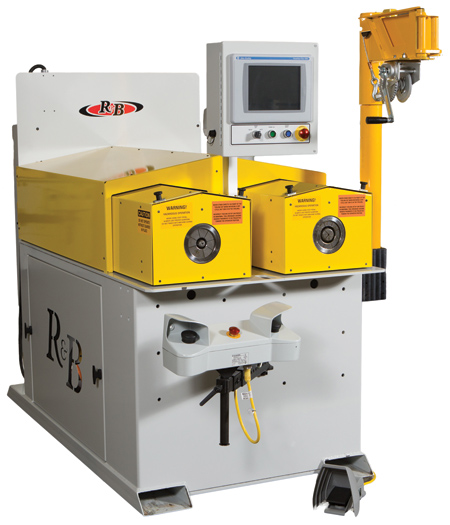

"The eRB80 IO+IO is the first in the line of ECOForm all-electric, digitally controlled, servo tube end forming machines, which eliminates the use of hydraulic oil and reduces operating costs," said a company spokesperson. The eRB80 IO+IO handles tube diameters up to 80 mm (3.1") with standard tooling and up to 100 mm (3.9") with heavy duty tooling with maximum wall thickness of 2 mm (0.079"). These machines offer velocity and force control for precision forming, while maintaining the same speed and force capabilities of traditional hydraulic machines.

R&B's tube end forming machines are used for a variety of applications, including precision sizing, diameter expansions or reductions, ram forming, flaring, notching and shearing. Base machine models are available in 80 mm, 150 mm and 250 mm tube diameter capacities with several options available, allowing customers to customize machines to meet specific requirements. Machines are available in single or multi-head configurations.

For more information contact:

R&B Machining

2695 Progress Way

Wilmington, OH 45177

937-382-6710

www.rbmachining.net
