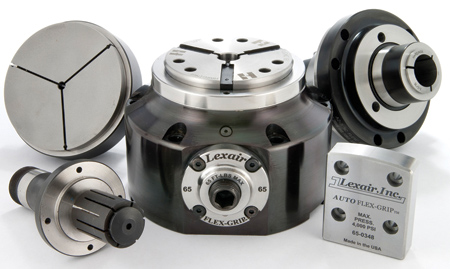

Flex Grip: One Closer, Four Workholding Solutions



Lexair's New Flex Grip closers are designed for versatility and efficiency, boosting productivity for a variety of machining operations including 5-axis, rotary indexer and stationary applications. The manual / hydraulic closers are clamped through a screw pump with a spring return opening. A parts stop disk is inserted and removed from the top to eliminate the need to remove the closer from the mounting base. The closers can also be equipped to operate under M-code command for fully automated applications.

With the addition of a Hardinge 5C and 16C tooling adapter, Flex Grip closers can be used with Hardinge FlexC collets and Sure Grip I.D. mandrels, 5C and 16C collets, as well as 5C and 16C step chucks, providing four workholding options in one collet.

Flex Grip closers are available in sizes of 65 mm and 80 mm and grip force up to 21,600 lbs. at 65 lbs./ft. The collets can be custom-fitted to nearly any application, and according to Lexair, testing has yielded .0002" part accuracy, with ±.020" range on part diameter and a 10-second collet change.

"With the addition of these tooling adapters, the 65 and 80 mm Flex Grip closers are some of the most versatile workholding solutions of their kind," said Steve Breslin, National Sales Manager, Lexair. "We have checked all the boxes: easy to set up, easy to use, excellent part results."

For more information contact:

Steve Breslin

Lexair, Inc.

2025 Mercer Road

Lexington, KY 40511

859-255-5001

sbreslin@lexairinc.com

www.lexairinc.com
