Semi-Automatic, Non-Ferrous, Upcut Saw
February 1, 2018

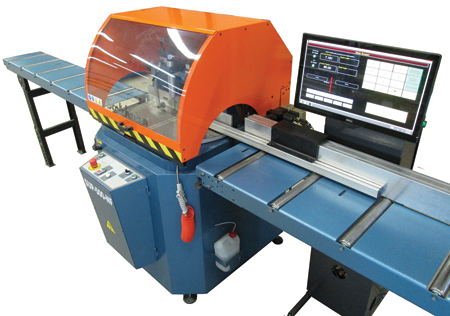

Scotchman Industries has featured its latest sawing automation option, powered by RazorGage. "The SUP 600 NF Upcut cold saw has been coupled with AngleMaster technology and is now a true production saw. It is programmable and will feed material, cut multiple angles at different part lengths and more with a push of a button," said a company spokesperson.
This Upcut Circular Cold Saw is designed specifically for cutting non-ferrous material and features a 24" (600 mm), 132-tooth carbide blade that is capable of producing round cuts up to 9" in diameter and rectangular cuts up to 15" x 6". Coupling this saw with the AngleMaster measuring system, creates a semi-automatic programmable saw system that automatically rotates to any cut angle, pushes material into the saw and automatically rotates to the next desired angle. The user can store cut lists on its 21" touch screen control.
Standard features include an adjustable feedrate, mitering capability with fixed stops at 22.5°, 45°, 90°, -45° and -22.5°, two horizontal and two vertical pneumatic clamps to secure material being cut and a 4-1/2" port for chip collection plus a drawer under the bottom of the saw. The SUP-600 NF is available in 230 volt and 460 volt configurations.
For more information contact:
Jerry Kroetch, President
Scotchman Industries, Inc.
180 E Hwy 14
P.O. Box 850
Philip, SD 57567
800-843-8844 / 605-859-2542
info@scotchman.com
www.scotchman.com
