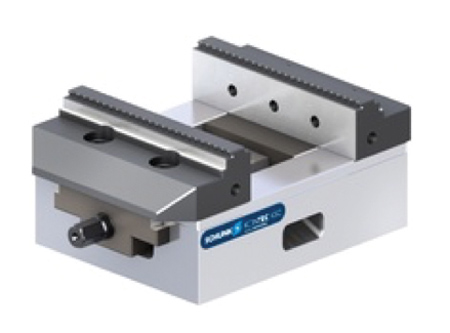

One Vise for All Workpieces



SCHUNK has expanded its SCHUNK KONTEC KSC 80 product line to include KSC 125 and KSC 160 in a variety of lengths and jaw configurations.

This centric clamping vise is a multifaceted component that has optimal jaw support for I.D. and O.D. clamping. It can be easily adapted for conventional clamping, short clamping depths for 5-sided machining, mould parts, plates or saw cuts.

"The KSC offers high precision and process reliability and features an extremely flat design," said a company spokesperson. "A pre-tensioned and backlash-free center bearing and an extra fitted slide guarantee a repeat accuracy of ±0.01 mm and enable the precise processing of the first and second side in a clamping system. An integrated chip drain and a protected spindle assure maximum process reliability. The centric clamping vise is ideally suited for affordable storage solutions in automated machine tools."

The vise is available with jaw width of 40, 80, 125 and 160 mm and lengths up to 480 mm, and clamping forces up to 50 kN. The KSC vise offers a variety of jaw configurations including grip jaws, combination jaws, soft jaws, 5-axis jaws and swivel jaws for complex applications.

For more information contact:

SCHUNK Inc.

211 Kitty Hawk Drive

Morrisville, NC 27560

919-572-2705

info@us.schunk.com

www.schunk.com
