5C Collet Rotary Table



TJR AR-5C

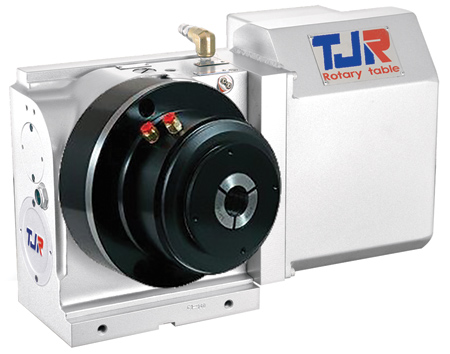

The TJR AR-5C Pneumatic Collet Rotary Table offers an affordable alternative to 3- or 4-jaw chucks for users whose workpieces require the use of 5C collets.

The AR-5C rotary table employs a 5C collet closer system and can be integrated into a CNC machine control as a full 4th axis or operated as an indexer via TJR's Single Axis Controller (SAC). The table features a powerful pneumatic braking system and is available in right-handed and left-handed motor mount configurations. A radial-axial preloaded bearing system provides high rigidity, and a dual-lead worm shaft and worm gear help provide long-term indexing accuracy in both directions.

Table diameter is 125 mm (4.92"), with a thru-hole diameter of 35 mm (1.37"). Minimum indexing increment is 0.001° and maximum table rotation speed is 83.3 RPM. Peak allowable workpiece load is 100 kg (220 lb). The table weighs 34 kg (75 lb.) and servomotor models are available for FANUC or Mitsubishi tapers.

Steve Smith, President of CNC Indexing & Feeding Technologies, said, "The TJR AR-5C Pneumatic Collet Rotary Table provides a rigid, accurate way for users to grip and index products suited for 5C collets."

A manufacturer of rotary tables since 2009, TJR Precision Technology Co., Ltd., supplies tables for application on machine tools including Doosan, Mazak, DMG MORI, Hardinge, YCM, Leadwell, Feeler, Bulova and Tongtai. A 3-year parts warranty is standard with all TJR rotary tables.
