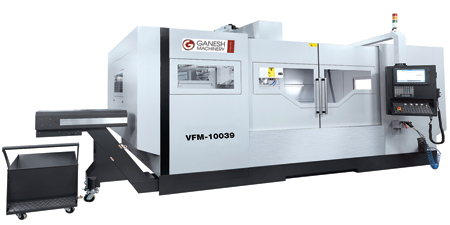

Vertical Milling Machine Offers Enhanced Productivity



"The Ganesh VFM-10039 combines strength with speed for optimum productivity," said a company spokesperson.

The VFM-10039 features XYZ travels of 98.4" x 39.3" x 39.3". A Meehanite cast iron frame provides a high-strength cutting platform with enhanced vibration dampening, allowing efficient metal removal rates. The 12,000 RPM 35-HP direct-drive in-line #40 taper spindle provides rigid tapping and features a thermostatically controlled spindle oil cooler. A #50-taper spindle and a 2-speed gearbox is optional for heavy-duty applications. The BIG-PLUS dual-contact precision ground spindle provides increased rigidity, reduced tool runout, increased tool life and greater cutting capability.

"The machine uses roller bearing guideways to provide nearly twice the rigidity of ball bearing ways for enhanced cutting performance," said the spokesperson. The Y-axis is supported by four heavy-duty roller bearing ways for increased cutting capability. A 40-tool twin-arm chain-drive ATC with a 4-second tool change is provided. A variety of standard features are included with the machine.

The Mitsubishi M830 control features Super Smooth Surface control to provide enhanced surface finish. The control processes 270,000 blocks per minute with 2,000 block look-ahead by using a 64-bit fiber-optic backplane and an advanced RISC processer designed exclusively for CNC machine tool use. Mid-program restart capability and 32 GB of part program memory are also included.

The Ganesh CNC vertical milling machine line-up starts at 24" x 16" and goes up to 100" in X and 39" in Y. Standard features for the VFM Series include 300 PSI through-the-tool coolant, auto power shut-off and 4th and 5th axis prewire.

For more information contact:

Ganesh Machinery, Inc.

20869 Plummer St.

Chatsworth, CA 91311

888-542-6374 / 818-349-9166

info@ganeshmachinery.com

www.ganeshmachinery.com
