All-in-One DPSS Laser Marking System
November 1, 2016

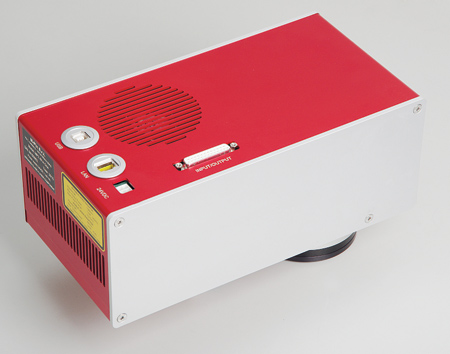

LNA Laser Technology has introduced laser marking system model MP2. The MP2 all-in-one DPSS laser marking system is designed for applications that require high resolution and where high-speed throughput is not required.
The system includes a diode pumped solid state (DPSS laser), laser beam scanning optics (galvanometer), control electronics and marking software. To use, load the software onto a PC and plug the system in.
The laser provides a pulse duration of 3 nsec, high peak power of 30 kW and runs on 24 VDC (6 amps). The 1,064 nm infrared wavelength is suited for laser marking a range of materials, including metals, plastics and some organics and can be used in any industry. An optional laser safe enclosure is available.
For more information contact:
LNA Laser Technology
136 Newell Avenue
Pawtucket, RI 02860
401-724-0076
info@lnalaser.com
www.lnalaser.com
