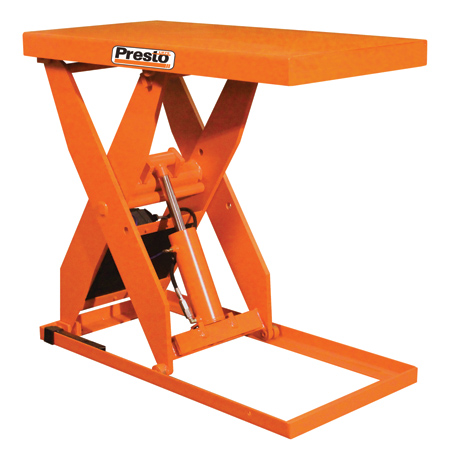

Scissor Lift Tables for a Variety of Uses



XL Series Scissor Lift Tables from Presto ECOA are industrial grade hydraulic lift tables for use in a wide variety of manufacturing, assembly, warehousing, metalworking, woodworking and repair shop applications.

Seventeen standard models are available in capacities of 2,000, 4,000, 6,000 and 8,000 lbs. Standard platforms range from 24" x 36" up to 24" x 86". Larger platforms up to 48" x 120" are readily available. Lift heights range from 31" up to 70".

Lifting and lowering is controlled by either a hand pendant or optional footswitch.

All Presto XL Series Lifts are built for dependable performance and long service life. Features include heavy-duty hydraulic cylinders with chrome-plated piston rods, hydraulic hoses designed to withstand four times the system's operating pressure without bursting, lifetime lubricated bearings and 3/4" steel plate scissor legs. A safety maintenance bar stores conveniently in the base and holds the unit securely in the up position during inspection and maintenance.

XL Series Lifts can be equipped with a wide variety of options and accessories to better suit specific application requirements. Platforms can be configured with conveyor or ball transfer tops, beveled edges or even turntables. The addition of a tilt top allows work to be positioned at the most comfortable height and angle. Scissor mechanisms can be placed in tandem configurations to allow additional capacity-up to 12,000 lbs. Portability options include fork pockets mounted to the base frame, four casters mounted under the base or a semi-live with skid spotter arrangement. Other options include bellows skirting, power unit upgrades, DC power, travel limit switches and more.

XL Series Lifts are ideal for a wide variety of uses, including loading and unloading pallets, feeding flat stock to punches, brakes and presses, feeding parts and blanks at drills and machining centers, inspection, repair, assembly and more.

For more information contact:

Presto ECOA Lifts

50 Commerce Way

Norton, MA 02766

800-343-9322 / 508-952-4000

sales@prestolifts.com

www.prestolifts.com
