All-Digital Servo-Stroke Honing for Prototype to Production Volumes

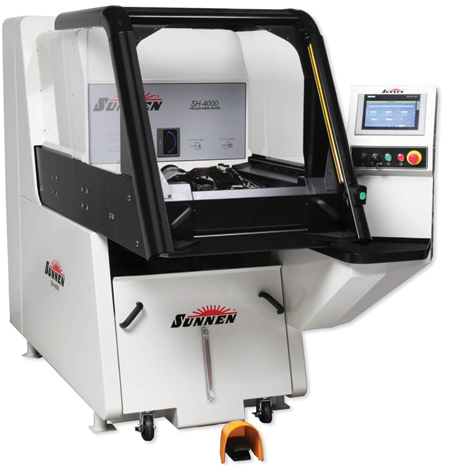

Sunnen's SH-4000 next-generation power-stroked honing machines feature a Siemens touchscreen PLC, digital-servo drives with a patent pending servo-hybrid tool feed system and a clear adjustable guard/light curtain.

The SH-4000 is engineered as an easy-to-use, flexible hone for medium to high production of parts with bore diameters from 1.5 mm to 102 mm (0.060" to 6.50"). It is capable of processing a wide variety of part sizes and configurations. It features a 4.1-kW (5 HP) spindle drive and 1.1-kW (1.5 HP) stroke drive with 400 mm (15.75") stroke length. Spindle speed is infinitely adjustable from 200 to 3,000 RPM, with stroke rates of 10 to 550 SPM.

"With 45% fewer parts and greater reliability than its mechanical predecessors, the SH-4000 introduces digital-servo tool feed and cutting pressure control for consistent, predictable performance throughout the pressure range," said a company spokesperson.

Cutting pressure can be adjusted in 4.5 N (1 ft-lb.) increments to a new maximum of 2,224 N (500 ft-lbs.), double the maximum of earlier models. The digital system provides enhanced feed control at low pressures for improved honing results with small-diameter parts. The higher cutting pressure, plus two-step honing capability, enables short cycle times. Two-step honing allows high stock removal coupled with a precise finish step, all in one operation. The new tool feed system includes 20 mm (0.79") additional travel for increased diameter range when using high-production MMT tooling.

The new servo ballscrew stroker offers greater precision and repeatability for honing in blind bores, while a longer stroke length of 400 mm (15.75") allows the new machine to take on deeper bores. For fast set-up, the machine's stroking system can be controlled with a joystick on the operator station.

The SH-4000 can use all the same tooling and fixturing as the predecessor EC and ML machines, and a new true-running spindle with direct collet connection allows quick set-up or changeover with MMT tooling. A quick-setting runout-adjustable adapter allows installation of standard Sunnen tooling, such as K mandrels. Side access to the work zone enhances operator ergonomics during set-up and facilitates integration with part-handling automation.

The Siemens 225-mm (9") touchscreen control features infinite part program storage and intuitive set-up and run screens to allow inexperienced operators to run the machine as efficiently as a veteran, the company reported. A new digital honing indicator is user-configurable. Standard control features include saved set-ups, zero shutoff, stone wear compensation, feed speed regulation (stone saver), two-step feed, spindle reverse, speed changes while in cycle, inch/metric selectable units, system diagnostics, cycle dwell, in-process short stroking and 13 operator languages.

The SH-4000 adapts to floor space limitations with an electrical cabinet that can be specified on the rear or either side of the machine. Generous free space in the enclosure is provided for integrating automation components.

The standard coolant system is nearly 70% larger than earlier machine models at 208 l (55 gal.) and designed for easy maintenance. It is equipped with quick-disconnect lines and level gauge and removes from the front on casters. Other user-friendly standard features include an integrated tray for parts/gauges, standard tooling adapter, an electric foot pedal for set-up and truing of mandrels, a mandrel runout indicator and a universal honing fixture. Options include an ultra-precision collet spindle, coolant magnetic separator, automation electronics package, automatic size-control unit, cycle time control, long fixture support bars and more.
