Enhanced VMC with More Automation Options

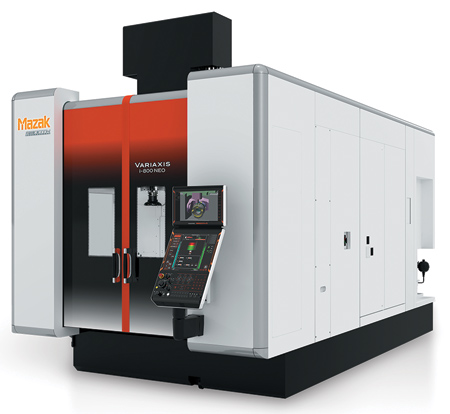

Mazak offers the enhanced VARIAXIS i-800 NEO Vertical Machining Center (VMC) featuring a powerful CNC, faster machining cycle times, expanded workpiece capacities and more automation options.

Among the primary enhancements on the VARIAXIS i-800 NEO is the MAZATROL SmoothAi CNC. It features functions including SMOOTH Machining Configuration (SMC) for process optimization with real-time operator control of a wide range of cutting parameters and Ai Thermal Shield for stable machining accuracy through smart compensation for heat displacement.

The VARIAXIS i-800 NEO now achieves rapid traverse rates of 1,890 IPM (48,000 mm/m) in the X, Y and Z axes that contribute to reduced cycle times. To accommodate larger workpieces, axis strokes increased to 29.52" in X, 35.03" in Y and 23.62" in Z (750 mm/890 mm/600 mm). Maximum workpiece weight capacities are 2,204.62 lbs. (1,000 kg) on the single-table version of the machine, and up to 1,543.24 lbs. (700 kg) with a two-pallet changer.

The machine now handles maximum tool lengths up to 16.33" (415 mm) in available magazine capacities of 30, 40, 80 and 120 tools. A new servo drive shortens tool wait times by up to 58%, and a 4.3 second chip-to-chip tool change time helps further reduce noncut time.

For additional flexibility, automation options now include a two-pallet changer, along with the Mazak Multi-Pallet Pool (MPP) compact multiple pallet stocker system and the modular Mazak PALLETECH System. The VARIAXIS i-800 NEO can work within the same PALLETECH cell alongside other Mazak machines, including the HCN-5000 and HCN-5000/50.

To support hydraulic and pneumatic fixturing, the machine provides nine ports with a single table configuration and four ports inside plus eight outside the machine for two-pallet changing.
