Updated Version Universal Measurement Software
February 1, 2022
Verisurf 2022 supports MBD for polygonal meshes, enabling users to create and inspect using intelligent meshes. MBD mesh files can be used, in place of a CAD model, as the baseline against which AM parts are inspected.
Verisurf Software, Inc. offers the 2022 release of its universal measurement software for automated quality inspection and reporting, scanning, reverse engineering and tool building. The new release builds on Verisurf's advancements in performance, including the ability to process millions of measured points per second; fast and easy inspection planning; and open platform compatibility, whether in the quality lab, on the shop floor or in the field.
One of the new features included in the release, Model-Based Definition (MBD) for meshes, enables users to create intelligent polygonal meshes for part inspection. MBD mesh files can now serve as the authority, in place of a CAD model, to inspect additive manufactured (AM) parts, saving considerable time and resources. Verisurf is built on a CAD platform that works with any CAD file and all portable arms, laser trackers, laser scanners, and both manual and programmable CMMs.
Verisurf 2022 has new and powerful features to support all measurement types, including portable, laser scanning, manual and programmable CMM applications.
Features for portable arms and trackers:
- Quick drift-analysis: Quickly determines whether the part, tool or device has moved. The most common causes for movement are temperature change, harmonics and physical contact.
- Enhanced alignment routines: Expanded controls enable interactive modification and update of the alignment settings, resulting in faster alignment and consistent results.
- Fast point cloud processing: The real-time scanning acquisition rate now exceeds 2 million points per second.
- Clipping plane for scanning devices: Real-time point-cloud clipping provides cleaner scan data, resulting in less editing to remove unwanted data.
- 2D cross section analysis: Visualize the profile-deviation outline and tolerance bands in the graphics window.
- Projection filter for point clouds and meshes: Enables rapid removal of erroneous data using filter zones based on the CAD geometry.

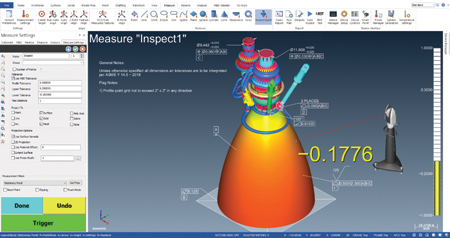

- Model-based definition (MBD) for meshes: Create intelligent meshes that can be used to inspect additive-manufactured parts. Extends MBD analysis to meshes, including thickness analysis on measured meshes.
Inspection-planning and reporting features:
- Find or select features from the graphics window: Quickly search, highlight and "go to" features in the Automate Manager and graphics window.
- CMM collision detection: Simulate CMM paths to detect collisions and perform corrections with dynamic clearance-point editing.
- Additional feature extraction options: Use feature zone display and pre-selection of features to fine-tune the extraction of data from the inspection plan.
- Auto-generate path for features: In Automate mode, the CMM path is automatically generated as features are added to the plan.
- Adaptive scanning for CMMs: Senses the location, shape and form of the component and dynamically adjusts the scan path to accommodate variations. Enables use of a single program to measure multiple part configurations.
