ModuleWorks offers its 2021.04 CAD/CAM software components.
The ModuleWorks 2021.04 release contains added and enhanced features across the entire product range. The most important developments include:

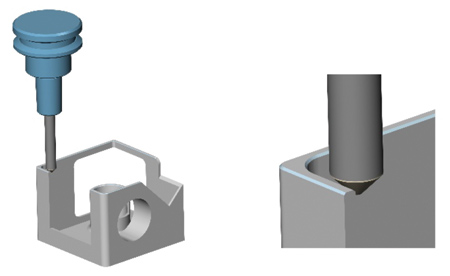

- Deburring with the tool cone and cylinder: Users can now define a fixed contact point on the tool that enables the cone and cylinder to be used for deburring. This makes deburring an attractive option for chamfering because the cone and cylinder leave no imprint of the tool's profile. To ensure a uniform chamfer, the tool is not tilted. Instead, to avoid collisions, the toolpath is automatically trimmed in the affected areas.

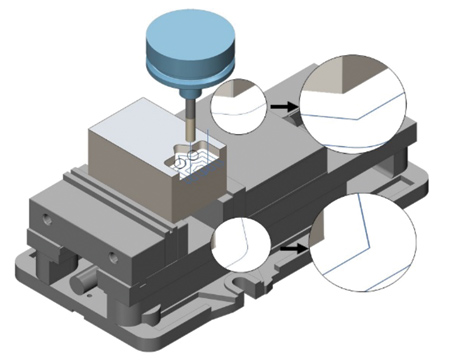

- Sharp corners for enhanced prismatic shapes: The 2D roughing algorithms prevent corner roll. This preserves sharp corners and providers greater control over the toolpath when machining prismatic shapes.

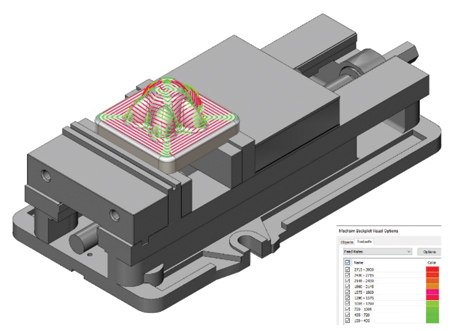

- Corner feedrate reduction: The ModuleWorks toolpath algorithms offer lower feedrates for machining corners. Decelerating the tool when machining sharp corners enhances surface quality and helps low-end CNCs handle high-performance toolpaths.

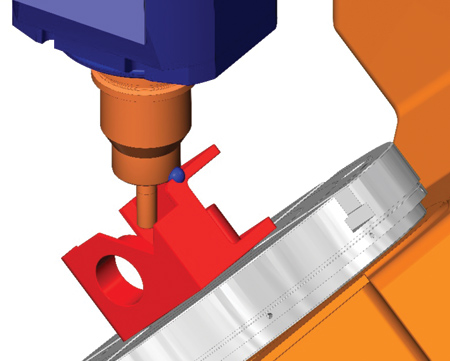

- Approximate point of collision: The Collision Checker algorithm now returns to the approximate point of contact between two objects. This enables OEMs to offer an enhanced user experience in their simulations, for example by drawing a sphere or other shape to graphically indicate the approximate area of the collision.

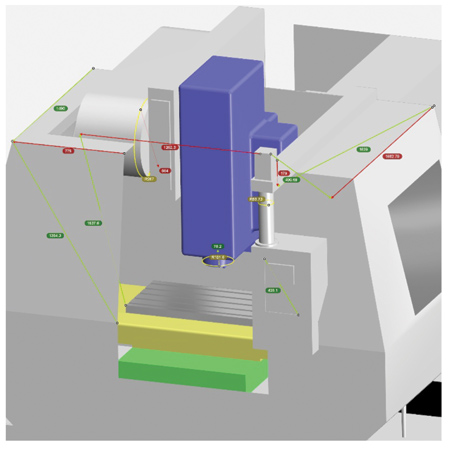

- Smart Measure for Machine Builder: The ModuleWorks Machine Builder now supports the Smart Measure module for measuring distances between any on-screen geometry. Smart Measure automatically recognizes different geometric features and their inherent dimensions, making it easier to create machine models.
