Semi-Automatic Dual Mitering Band Saw
February 1, 2022

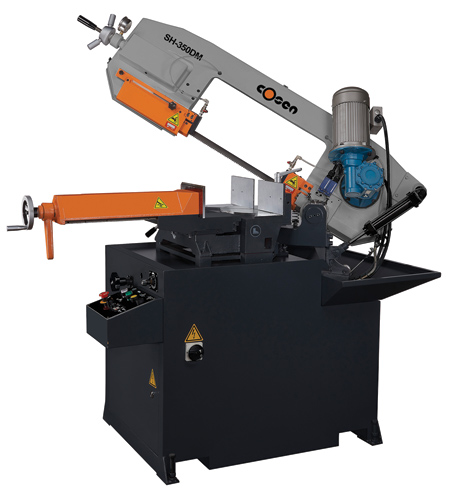

Cosen's SH-350DM is an industrial, semi-automatic dual mitering band saw suited for small to medium machine shops, maintenance shops, metal fabrication shops and schools. The machine is able to handle cutting square, round and rectangular solids as well as tubing materials.
The saw comes equipped with a 1" blade, a 2 HP blade motor and the ability to miter cut up 60°, allowing it to reach blade speeds that range from 66-295 ft/min. The scale mounted onto the work bed of the machine makes it easier to get precise angles for cutting, and the manual vise and adjustable down feed give the operator more control. The capacity of the saw allows for larger sizes of both round and rectangular materials to be cut on it.
Specifications include:
- Capacity angle: 0°, 45°, 60°
- Round capacity: 10.2", 7.9", 5.5"
- Rectangular capacity: 7.9" x 13.7", 7.9" x 9.64", 5.5" x 5.5".
The operator's control panel is clearly arranged and located in an ergonomic position next to the work bed. All operator controls are clearly labeled for ease of operation. The electrical components are located inside the control box with the main lockout disconnect on the front of the control box for safety and easy maintenance.
Other features include:
- Hydraulic cylinder plus precision ground hinge support
- Swivel saw head allowing miter cutting in both directions
- Adjustable flood coolant system
- Direct drive gearbox
- Carbide blade guides and bearings that provide additional blade support
- Rigid cast iron guide arms
- Blade tensioning system with pressure gauge
- Blade cleaning chip brush
- Heavy duty quick clamp/release vise
- Adjustable down-feed control.
"The SH-350DM is built with high quality materials and solid construction, which help ensure many years of reliability and a high level of accuracy and performance," said a company spokesperson. "All of these features make it a cost effective solution for limited run production work. The SH-350DM is currently in stock and ready to ship from our Charlotte, NC facility to anywhere in North America."
For more information contact:
Cosen Saws USA
4527 Dwight Evans Rd.
Charlotte, NC 28217
704-943-1030
sales@cosensaws.com
www.cosensaws.com
