Straighten and Cut Without Burrs
February 1, 2022
Straightening and cutting machines from Jouhsen-bündgens let customers straighten and cut short sections made from steel or stainless steel, whether straight or angled, and without burrs.

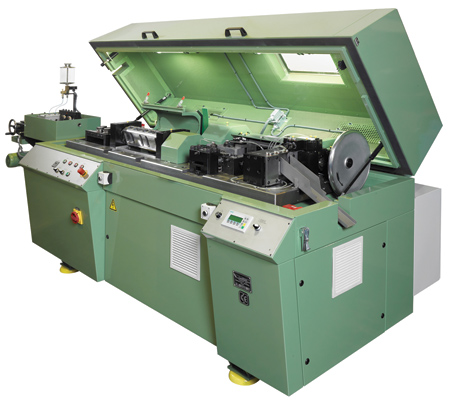

The PrecisionCut MJC series was developed for straightening and cutting straight and right-angled sections of wire and pipe without burrs and in large quantities.
PrecisionCut MJC is a series of straightening and cutting machines that can straighten and cut short, straight and angled sections without any burrs. Developed by Jouhsen-bündgens, these machines process wires measuring between 0.5 mm and 9.3 mm in diameter, with outputs of up to 800 units per minute.

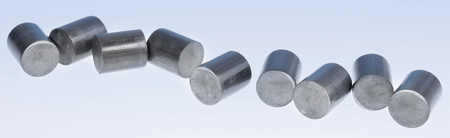

For straightening, customers can choose between a rotating or roller straightener. The straightening tools can be changed quickly and easily to handle different wire diameters. It is also possible to adjust the part lengths. The sections produced on the PrecisionCut MJC are used in a wide variety of applications, including as rollers for roller or needle bearings, along with bolts, contact pins, hinge pins, axles or motor shafts.
The system features precisely cut and exchangeable linear guides to provide a zero-vibration mount for the tool. The precision guides and drive shaft are mounted on a cast-steel plate for easy access, making adjustments and maintenance work easier. The infeed and cutting system are controlled mechanically by means of a split-cam shaft. An enclosed machine housing effectively dampens the noise and is easy to access from three sides. The drive, electronics and central lubrication are all integrated. The PrecisionCut MJC is also available in special versions upon request.
For more information contact:
JouhsenBundgens Inc.
1100 South Tower
225 Peachtree Street NE
Atlanta, GA 30303
404-850-9753
jouhsen@jouhsen.de
www.jouhsen.de
