Professional Imaging System for Microscopes

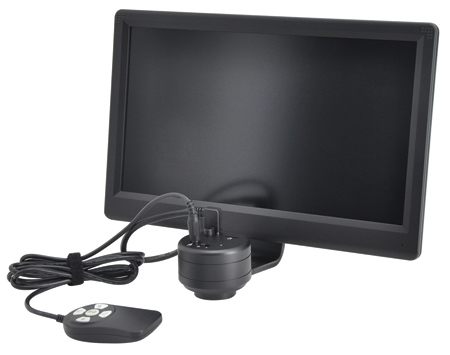

Titan Tool Supply, Inc. offers the CD2000 Professional Imaging System integrated with a high-performance CMOS camera and high-resolution LCD for use with industrial, stereo and biological microscopes. It features multi-angle (up to 270°) and multi-joint rotation for ease of use and fast, efficient inspections, according to the company.

The CD2000 offers real-time HDMI 2.0 megapixel high-definition image preview and one-button snapshots as well as continuous photo-taking and recording. One screen has four sets of firmware, which is suitable for both stereoscopic and biological microscopes and for LED and halogen lamp lighting. The 12.5" anti-glare screen has a maximum resolution of 1,920 by 1,080 pixels with parameter adjustments such as exposure, white balance and resolution. Other adjustments include freeze, sharpness, record mode, language settings, formatting, color, spectrum image quality, fast preview, image rotation and customized crosslines, grids and concentric circles.

The imaging system has 2 HDMI inputs and 3 DC 5V/2A outputs with USB interfaces. The wired controller used for setting camera and display parameters has a 1.5 meter (4.9') cable. The high-grade metal camera connector is designed for long-lasting durability, according to Titan Tool.

For more information contact:

Titan Tool Supply, Inc.

68 Comet Ave.

Buffalo, NY 14216

716-873-9907

info@titantoolsupply.com

www.titantoolsupply.com
