Improved Production Floor CMM Measurements

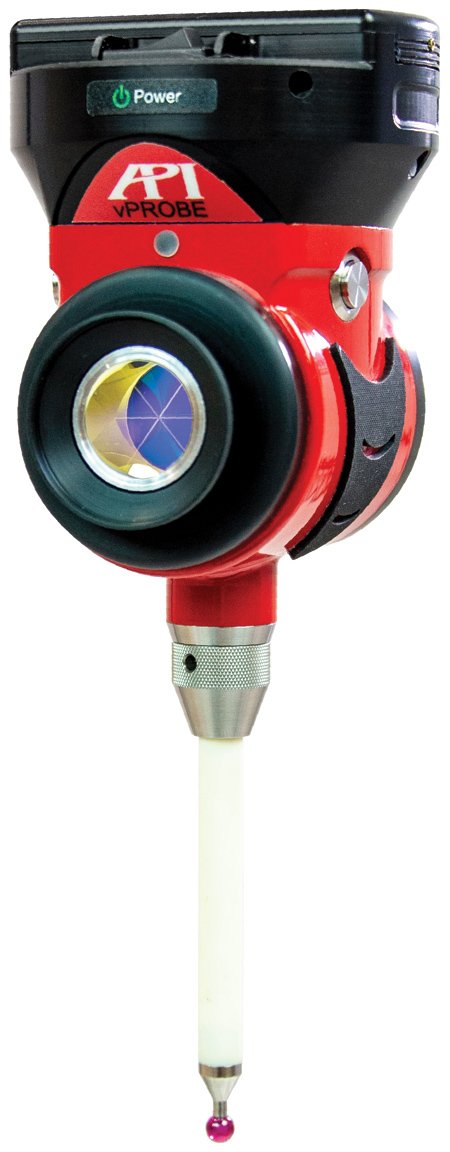

The new and improved API vProbe Tactile Measuring sensor

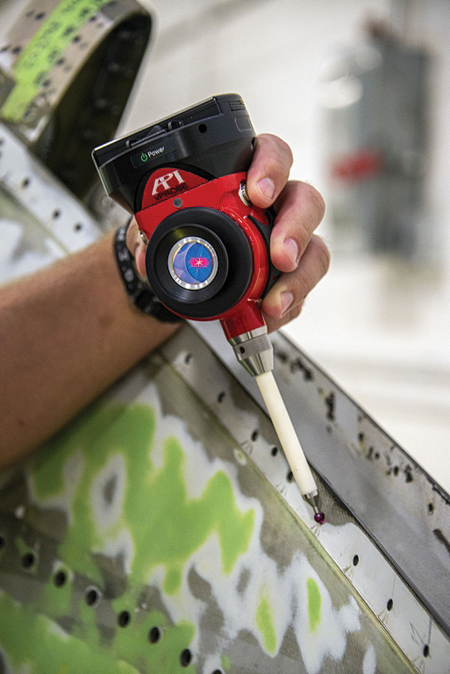

vProbe with Smart Buttons and RFID stylus performing point measurement

vProbe with Radian Laser Tracker performing part inspection

The new and improved API vProbe tactile measuring sensor provides the ability to perform accurate CMM-style measurements directly on the production floor. "Integrated with the API Radian Laser Tracker series, vProbe significantly enhances the measuring capabilities and functionalities of traditional Laser Trackers," said a company spokesperson.

vProbe is a wireless, hand-held, lightweight, tactile probe with easy hold grip that allows users to perform extended coordinate measuring functions by inspecting intricate internal and external features or part characteristics, providing fast and accurate dimensional measurements.

"vProbe offers more versatility than a portable arm CMM, as well as greater accuracy and consistent measurements, making it inherently more suitable for medium and large parts," said the spokesperson. "The RFID probe stylus recognition feature of the new vProbe eliminates the need to manually select the probe stylus, ultimately removing potential for error. Additionally, Smart Buttons create a better user experience, minimizing trips to the computer to select common functions that are now integrated in the probe." Dynamic tactile scanning capability provides instant coordinate feedback, and the integrated battery provides 6 hours of measurement activity. Styli lengths up to 500 mm with a variety of tip sizes can be accommodated.

For more information contact:

API

15000 Johns Hopkins Drive

Rockville, MD 20850

800-537-2720

www.apimetrology.com
