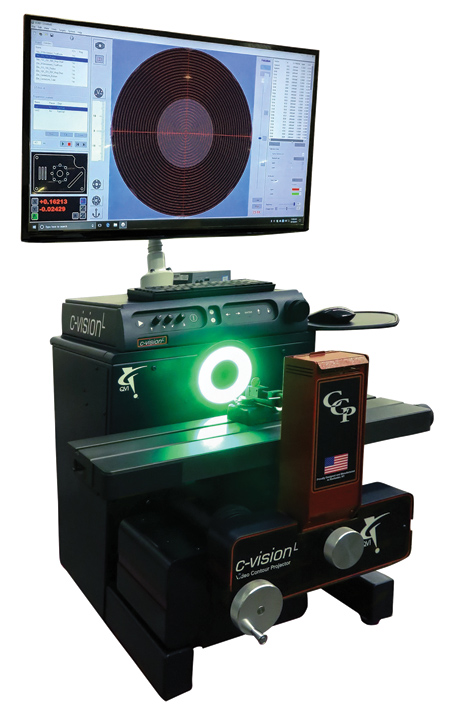

c-vision Lite Digital Video Comparator



Quality Vision International (QVI) has introduced its new c-vision Lite digital video comparator.

This benchtop digital video comparator features a compact footprint that uses very little floor space. Its rugged design and construction make it suitable for use in often-harsh workshop conditions. Precision optics and lighting ensure enhanced image quality and precise imaging of a wide range of parts. c-vision Lite merges a familiar user-friendly comparator form with advanced digital imaging technology, offering the best of both worlds.

vCAD virtual chart gauge software is integrated into c-vision Lite. vCAD overlays a virtual chart gauge based on a standard comparator chart, such as a centerline or radius chart, onto the measured part displayed on the video screen. In addition, custom virtual charts derived from the measured part's CAD design may be used. Use of standard or CAD-derived virtual charts offers maximum versatility in part measurement and comparison. vCAD's virtual charts eliminate the need to maintain a large library of traditional comparator charts.

Standard features included with c-vision Lite are a 12" x 5" manual XY stage, 1.5" manual focus, ± 6.5° helix motion, 1 µm scales, profile illumination, low mag lens with 2" diagonal field of view (equivalent to 4x optical magnification), 24" monitor, computer and vCAD software. Motorized stages and SNAP-X metrology software, for automated part measurement and inspection, are optional.

For more information contact:

Timothy Fantauzzo

VP, QVI Global Sales

Certified Comparator Products

850 Hudson Avenue

Rochester, NY 14621

585-758-1300

ccpinfo@qvii.com

www.qvii.com/ccp
