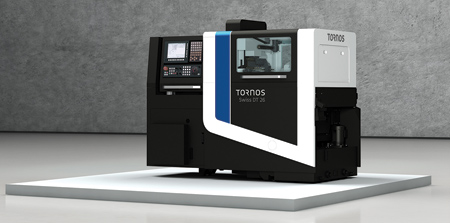

With its launch of the Swiss DT 26, Tornos now offers two machines in its segment that are based on similar aesthetics and design platform. However, the kinematics and dimensions are different. Philippe Charles, head of Product Management Swiss-type said, "We wanted to develop a high performance machine with exceptional power levels for turning bars up to 25.4 mm diameter. The challenge for our engineers was to exceed customer expectations and in the process, maintain a competitive market price. The expectations from the market are different for a 13 mm machine and for a 25.4 mm machine. Whereas competitors base the design of a 20 or 26 mm machine on the same structure as a 12 or 16 mm capacity machine, the fine tuning of the kinematics on the Swiss DT 26 gives it a performance and productivity lead over alternate machines."
As an entry level 5-axis turning center with two C-axes, and the larger sister model of the recently introduced Swiss DT 13, the Swiss DT 26 shares the design of the Swiss DT 13. But the structural similarities end there. The new Swiss DT 26 has a larger working envelope to enhance operator visibility and access. Unlike the smaller Swiss DT 13 with a smaller footprint and a depth of 870 mm, the Swiss DT 26 is 1,300 mm deep. This expanded platform enhances rigidity and vibration damping, which gives the Swiss DT 26 precision, surface finish and even tool life stability over alternate machines. It also gives customers the ability to conduct heavier cuts at higher feeds and speeds. "To accommodate the heavy duty machining parameters of the new Swiss DT 26, the turning center has a powerful 10.5 kW motor on both front and rear spindles that delivers impressive torque levels throughout the speed range of up to 10,000 RPM," said a company spokesperson.
Both front and rear spindles feature the same high power, torque and clamping forces. "For the customer, this eliminates any concerns over balancing the operations of each component between spindles. While the Swiss DT 26 delivers exceptional power and torque levels, the smaller Swiss DT 13 derivative has a spindle of 4.0/5.0 kW and maximum spindle speed of 15,000 RPM for high speed and feed machining of smaller parts," said the spokesperson.
Because rear-working operation is considered an equally important process as main spindle machining, Tornos has enabled the back-working stations to be equipped with rotating attachments that offer modularity. "Additionally, the Swiss DT 26 incorporates a modular tooling configuration for both main and counter operations, which is unique for this range of machine. It means the new machine can be equipped with a thread whirling attachment, a polygon milling attachment, a frontal milling unit or even a slotting device in counter operation. This flexibility is further enhanced with 5 linear axes, 2 C-axes, 22 tool positions and up to 8 rotating tools," continued the spokesperson. Customers have the option of running the Swiss DT 13 and Swiss DT 26 with or without the guide bushing.
The machine offers a high level of autonomy with different options such as chip conveyors, oil mist extraction units and part collection devices.
These new machines can be integrated into an existing bank of machine tools with TISIS software package. It includes an Industry 4.0 module to measure the efficiency of the production process with the integration of cameras.
