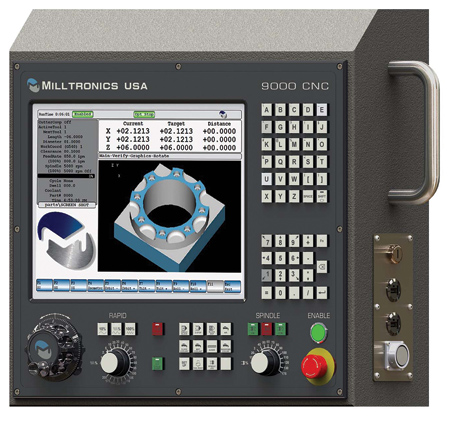

Milltronics Series 9000 CNC
Milltronics Shop View (MSV), an optional feature for the Series 9000 Control, is hosted in the cloud and can be accessed with a PC, tablet or smartphone.
Milltronics USA, Inc. offers the Series 9000 CNC as its latest PC-based control designed so anyone in the shop can program it. The Series 9000 can be programmed conversationally, with industry standard G- and M-codes or with toolpaths downloaded from a CAM system. The control is now available on Milltronics GP, IL and XP vertical machining centers (VMCs) and new SL-II Series of slant bed CNC lathes.
"With a 15 inch touchscreen, easy programming, on-screen help, intuitive menus, color graphics and prompted tool settings, the Series 9000 helps new operators train faster and become more productive sooner. The following features allow quick and confident operation of the CNC," said a company spokesperson. The features include:
- Solid model graphics allow operators to see a completed part prior to cutting. Milltronics intertwines its graphics with the motion system so the operator sees exactly what the machine is going to do (not just a picture of the part).
- Handwheel run allows the operator to run a program in a controlled mode where motion only occurs while the hand wheel is turning - allowing the operator to verify programs with total control and complete confidence.
- Mid-program restart allows the operator to start anywhere in a program by verifying the graphics and then switching to Run Mode - no need for G- and M-code expertise.
- The Series 9000 features an Intel Dual Core i5 64 bit processor and high-speed motion control that can execute up to 3,000 blocks per second so customers can run their most demanding programs in the shortest time. The Series 9000 control offers 4 GB memory, 120 GB solid state disk storage and two USB ports.
Milltronics utilizes a complex "Feed Forward" error correction algorithm that reduces inaccuracy caused by corner rounding and following error without compromising speed as well as true S curve acceleration and jerk correction - essential ingredients for high speed machining.
An optional feature for the Series 9000 is Milltronics Shop View (MSV), which allows users to access machine status and collect usage and diagnostic info per Industry 4.0. MSV is hosted in the cloud and can be accessed with a PC, tablet or smartphone.
Additional key specifications include:
- Number of cores: 2
- Processor base frequency: 2.7 GHz
- Max turbo frequency: 3.3 GHz
- GPU core speed: 600 MHz
- Primary OS: Windows Embedded 7
- Display: 15" color 1024 x 768 touchscreen.
For more information contact:
Bill Bender
Milltronics USA, Inc.
1400 Mill Lane
Waconia, MN 55387
952-442-1410
bbender@milltronics.com
www.milltronics.com
