40-Ton Electric Press Brake

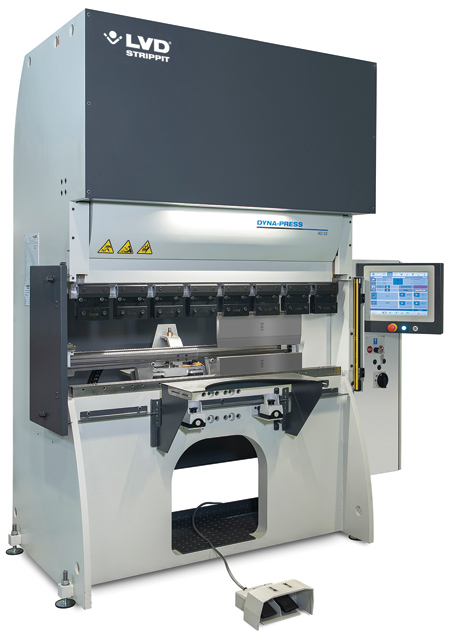

LVD Strippit has expanded its Dyna-Press Series of compact, high-speed electric press brakes with the addition of the Dyna-Press 40/15 Plus, a 40-ton model that offers a working length of 60" (1,530 mm) and features a precision 4-axis back gauge and LVD's exclusive TOUCH-B touchscreen CNC control.

The Dyna-Press 40/15 Plus is designed to efficiently bend parts at high bending speeds of 59" per minute (25 mm/s), producing more parts per hour at a lower cost per part. The coupling of the ram and servomotors is realized through two heavy-duty ball screws to distribute force and tonnage evenly across the working length. The electric ram offers smooth transition from approach to working speed and minimizes power consumption through the use of an optimal power to inertia motor ratio.

The Dyna-Press is designed to provide enhanced production capabilities with consistent repeatability and accuracy, as well as the flexibility to handle a broader range of parts through a precision four-axis back gauge.

The TOUCH-B 15" touchscreen control is designed to make set-up fast and efficient. With minimal input, the operator can create 2-D and simulate in 3-D on the 15" touchscreen. The TOUCH-B control also offers network connection with CADMAN-B programming software for added flexibility.

The Dyna-Press 40/15 Plus front support table gives the operator the option to work in a seated or standing position.

LVD Strippit's Dyna-Press 40/15 Plus joins the Dyna-Press 12/8, 24/12 and 24/12 Plus models. All Dyna-Press press brakes offer the flexibility of tooling choice. A range of tooling styles is available for both punches and dies.
