High-Performance Milling Cutter for Machining Steel and Stainless
December 1, 2016

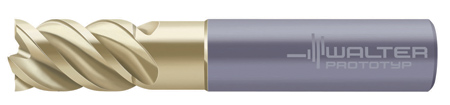

New MC341 milling cutter from Walter
The new MC341 Supreme carbide shoulder/slot milling cutter from Walter is designed for extended tool life when machining steel and stainless steels. "The cutter delivers enhanced tool life, plus performance improvements of up to 100% due to the innovative new Walter WK40TZ grade, a special proprietary coating process and added design enhancements," said a company spokesperson.
The cutter features the capability for full slotting at 1.5 x Dc, low spindle load due to a differential pitch, soft cutting action as a result of optimized micro-geometry and enhanced chip evacuation. In addition, the MC341 Supreme "cutting-at-back radius" is designed to reduce transitions when performing shoulder milling operations. It is designed to achieve a high level of process reliability due to its stable core and optimized micro-geometry.
The DIN 6535 HA tool shank has a surface treatment for better gripping and the cutters are available in sizes from 6 mm to 20 mm dia.
For more information contact:
Walter USA, LLC
N22 W23855 Ridgeview Pkwy. West
Waukesha, WI 53188
800-945-5554
www.walter-tools.com/us
