Modular Fixture Tower



Phillips Precision, Inc. Products Division has announced the latest in its LEAN Inspection Arsenal product line - Modular Tower System for CMM inspection.

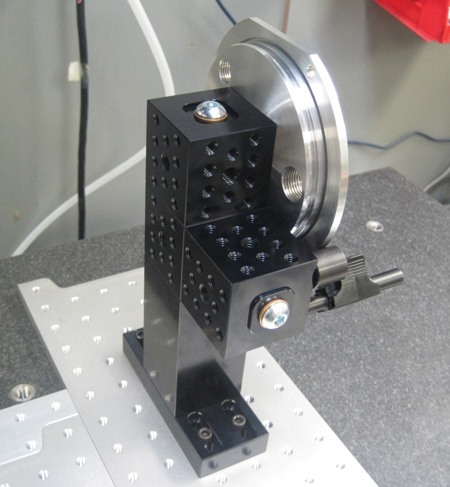

First in the line of towers is a 2" interlocking system that can be built both vertically and horizontally. Cubes added horizontally can be turned to any angle and locked securely.

Features and benefits:

  • Building block design lets the user determine the height
  • Staggered hole pattern adds flexibility for workholding
  • Adds even more versatility to Inspection Arsenal workholding systems
  • Able to build vertically and horizontally - horizontal cubes can be secured at any angle
  • Works with all existing 1/4-20 workholding
  • Maximize the CMM work envelope without interfering with probe travel.

Preconfigured systems include several interchangeable components: an adjustable base, 2 x 2" cubes, 4" blank spacer block and 2" and 4" posts that connect the system and provide pivot points. Each cube has 10 (1/4-20) holes per side for flexibility in holding positions and a 3/8-16 threaded centered hole that allows cubes to be added horizontally. The components are designed with male/female locating features and are made from aluminum that is black anodized for durability.

Inspectors are no longer limited to the heights of a few towers. Users can maximize CMM work area without interfering with probe travels. Customers can choose from two preconfigured systems or order pieces individually. Custom sized systems are available.
