Compact Monitoring Systems for Forming Processes

Marposs has announced the availability of its Brankamp X1 and X3 in-process monitoring systems for cold and hot forming, thread rolling and stamping operations. These all-in-one units provide real-time monitoring of machine parameters, helping to immediately identify manufacturing faults as well as part or tool variations. This capability enables manufacturers to optimize machine efficiency, improve part quality and limit unplanned downtime and tooling costs.

"Process-integrated monitoring provides an effective way to detect a broad range of quality defects such as cracks in components, broken tool elements or turned or mis-introduced parts," said Philipp Janssen, Marposs Product Manager, forming and stamping solutions. "Detecting these issues leads to 100% workpiece quality control."

The systems work in the following manner. Sensors are placed in the right positions to convert energy into electrical signals that monitor tool and machine performances related to the forces applied. From these sensors, the systems learn the normal limits of the process. The control unit then observes the signals of each cycle and compares it with the stored curve. When the signal moves outside of the envelope curve, the formed part is sorted out or the machine is stopped.

The X1 and X3 systems provide economical solutions for this type of monitoring, providing eight channels for sensor signals and four others as zoom channels for detailed monitoring of specific, sensitive process areas. For example, the sensor signals are displayed as maximum forces, envelope curves and trend progressions. These additional inputs can monitor things such as distorted parts or a wire feed stop.

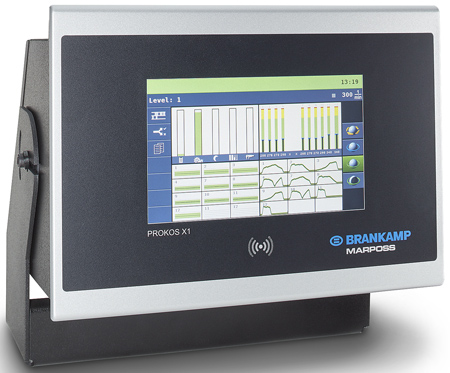

The X1 is operated by a 7" touchscreen and the X3s by a 9" touchscreen with an intuitive operator interface. Each system allows for the type of machine to be monitored. In addition to the multi-channel display, the systems have various analysis functions, e.g. automatic recording of run and set-up times or downtimes, as well as different counters and storage media to ensure repeatability of the various processes.
