Filter Removes Contaminants Down to .01 Micron

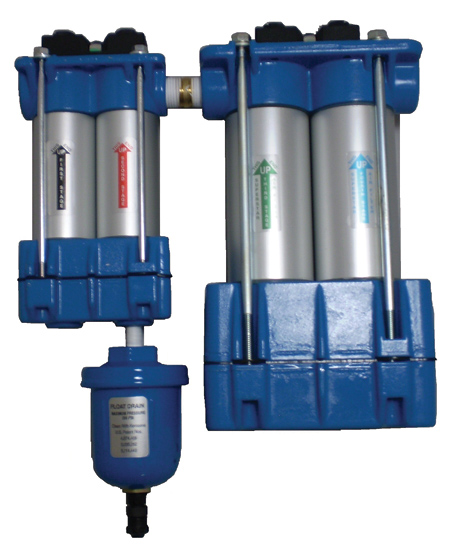

The .01 Micron SuperStar Filter from Walmec North America is designed to provide clean, dry, compressed air resulting in the removal of any vapors and contaminates down to .01 micron.

The .01 Micron SuperStar Filter is a four stage filtration system that has a .01 micron rating and flow ranges of 50 SCFM, 75 SCFM or 100 SCFM, and can handle pressure ratings of up to 250 PSI. The .01 Micron SuperStar Filter works best when it is installed at or near the point of use.

The first and second stage filters remove moisture, liquids, dust, rust, scale and other contaminants to 5 microns. An automatic float drain under the second stage filter opens and expels all collected liquids whenever an ounce or more is present. It is fully automatic with no continuous air loss. The third and fourth stages remove any remaining particles down to .01 microns and absorb any remaining vapors.

The .01 Micron SuperStar Filter includes a differential pressure gauge and comes with mounting brackets. The differential pressure gauge provides a visual indication of required maintenance, which is easily done by installing the appropriate service kit. No need to remove the unit from the compressed air system.

For more information contact:

Walmec North America

P.O. Box 328

Mazeppa, MN 55956

866-764-8377 / 507-843-4703

www.walmecna.com
