Ramping Cutter for Aluminum Machining

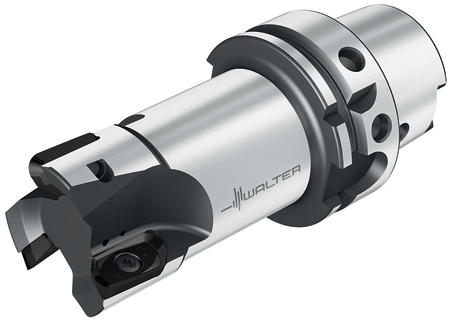

Walter M2131 Sky·tec Ramping Cutter

The M2131 Sky·tec Ramping Cutter from Walter is designed to provide higher levels of process reliability in the machining of non-ferrous metals, such as aluminum wrought alloys or aluminum lithium alloys often used in aircraft structural components. "The cutter allows shorter machining time due to its high metal removal rate and delivers long tool life due to low build-up on the cutting edge," said a company spokesperson.

The M2131 features protection against centrifugal force at the insert contact surface, which helps ensure process reliability even at maximum speeds, and its V-shaped cutting edge for ramping promotes rough milling and semi-finishing of pockets with high chip volume.

This 90° shoulder milling cutter with ramping capability has a maximum cutting depth of 0.59" or 0.78" (15 or 20 mm), a diameter range of 0.98" - 3.14" (25 - 80 mm) and a high level of radial runout accuracy. The M2131, with integral cooling for MQL or emulsion, has a finely balanced basic body, with different interfaces such as HSK, ScrewFit, cylindrical shank or shell mill mount. It has two sizes of indexable inserts with various corner radii, and employs the milling grade WNN15 designed for long tool life.

For more information contact:

Walter USA, LLC

N22 W23855 Ridgeview Pkwy. West

Waukesha, WI 53188

800-945-5554

www.walter-tools.com/us
