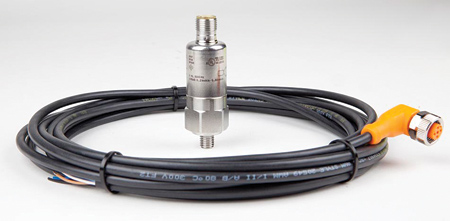

Vibration Sensor Helps Prevent Critical Equipment Failure



Vibration fluctuations in machinery are an early indicator of problems that cause equipment failure. Sensaphone's new Vibration Sensor can be permanently mounted on equipment to continuously monitor vibration velocity and detect unusual conditions.

The sensor provides constant real-time data to an accompanying Sensaphone monitoring device, which sends an immediate alert to designated personnel when vibration levels fall out of range.

Industrial applications include hydraulic pump motors, air coolers, fan gears, oil cooler fans, separators and more.

The Sensaphone Vibration Sensor is compatible with all Sensaphone monitoring devices that accept a 4-20 mA input. The sensor monitors the vibration velocity on a non-rotating surface and conforms to ISO 10816 guidelines for mechanical vibration. Using the Sensaphone Vibration Sensor helps to safeguard critical equipment through vibration analysis and to prevent possible equipment failure.

Features of the Sensaphone Vibration Sensor include:

  • Simple two-wire 4-20 mA installation
  • Easy configuration with no software required
  • IP 67/IP 68/IP 69K rated 316L stainless steel
  • Optional magnetic mounting foot.

For more information contact:

Sensaphone

901 Tryens Road

Aston, PA 19014

877-373-2700

sales@sensaphone.com

www.sensaphone.com
