Gear Break-in Lubricity and Rust Protection Achieved

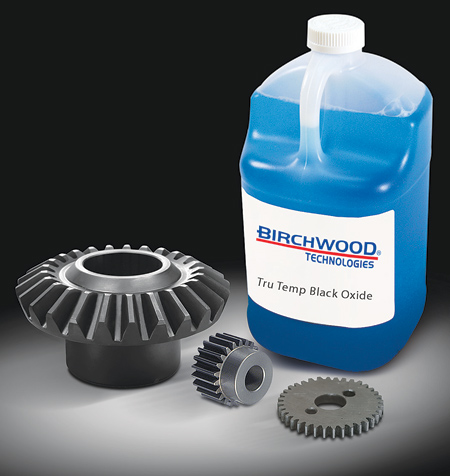

"Gear component manufacturers can achieve break-in lubricity, corrosion protection and galling resistance on critical components. Birchwood Technologies' TRU TEMP low temp black oxide process meets demanding finishing requirements while creating a non-dimensional finish, maintaining the same material hardness and load-bearing properties," said a company spokesperson.

The TRU TEMP blackening line operates at 200° and forms a satin black magnetite finish that protects critical surfaces in storage, shipment and start-up, resists galling and aids in break-in. The process takes just 30 minutes.

The TRU TEMP finish is Mil Spec and RoHS compliant and withstands up to 120 hours of neutral salt spray or several hundred hours of humidity, verified by independent testing. The finish is a 0.5 micron thick (20 millionths) crystalline structure that allows it to effectively hold a rust inhibitor and serves as a sacrificial barrier to provide break-in lubricity and galling resistance. Critical parts are protected for storage or overseas shipment.

The TRU TEMP low temperature black oxide system can be installed in any plant setting without endangering personnel or surrounding equipment. The operating solutions contain no EPA regulated chemicals; process rinse waters are normally sent to the sewer as non-hazardous discharge. Most process lines do not require waste treatment equipment.

TRU TEMP process lines are available in any size to fit part size and production volume.

For more information contact:

Birchwood Technologies

7900 Fuller Road

Eden Prairie, MN 55344-9702

800-328-6156 / 952-937-7931

info@birchwoodtechnologies.com

www.birchwoodtechnologies.com
