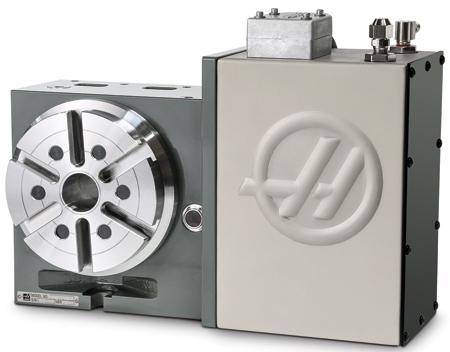

The HRC160 from Haas Automation is a high-speed, cam-driven rotary table that provides cutting and indexing speeds up to 830°/second. It provides 108 ft-lbs. (146 Nm) of spindle torque for synchronous 4-axis machining, and has a pneumatic brake that yields 96 ft-lbs. (130 Nm) of holding torque for stationary work. Indexing accuracy is +/-30 arc-sec, with repeatability of 4 arc-sec. The 6.3" (160 mm) platter of the HRC160 has a center height of 5.000" (127.00 mm), with a 1.50" (38.1 mm) through bore. Six radial T-slots simplify fixture and workpiece mounting, and both manual and pneumatic tailstocks are available for additional workpiece support.
The HRC160 is driven by a high-performance roller cam system that uses a high-torque servomotor to drive a globoidal cam meshing with cam followers equally spaced around the diameter of a roller gear. Needle bearings in the cam followers provide smooth contact with the cam, and a precision-engineered cam profile is designed to ensure accurate speeds and motion. "Because the roller drive is preloaded during assembly, the system yields high stiffness, high torque and high speeds while providing low wear characteristics and reducing maintenance," said a company spokesperson.
For more information contact:
Haas Automation, Inc.
2800 Sturgis Road
Oxnard, CA 93030
800-331-6746
www.HaasCNC.com
