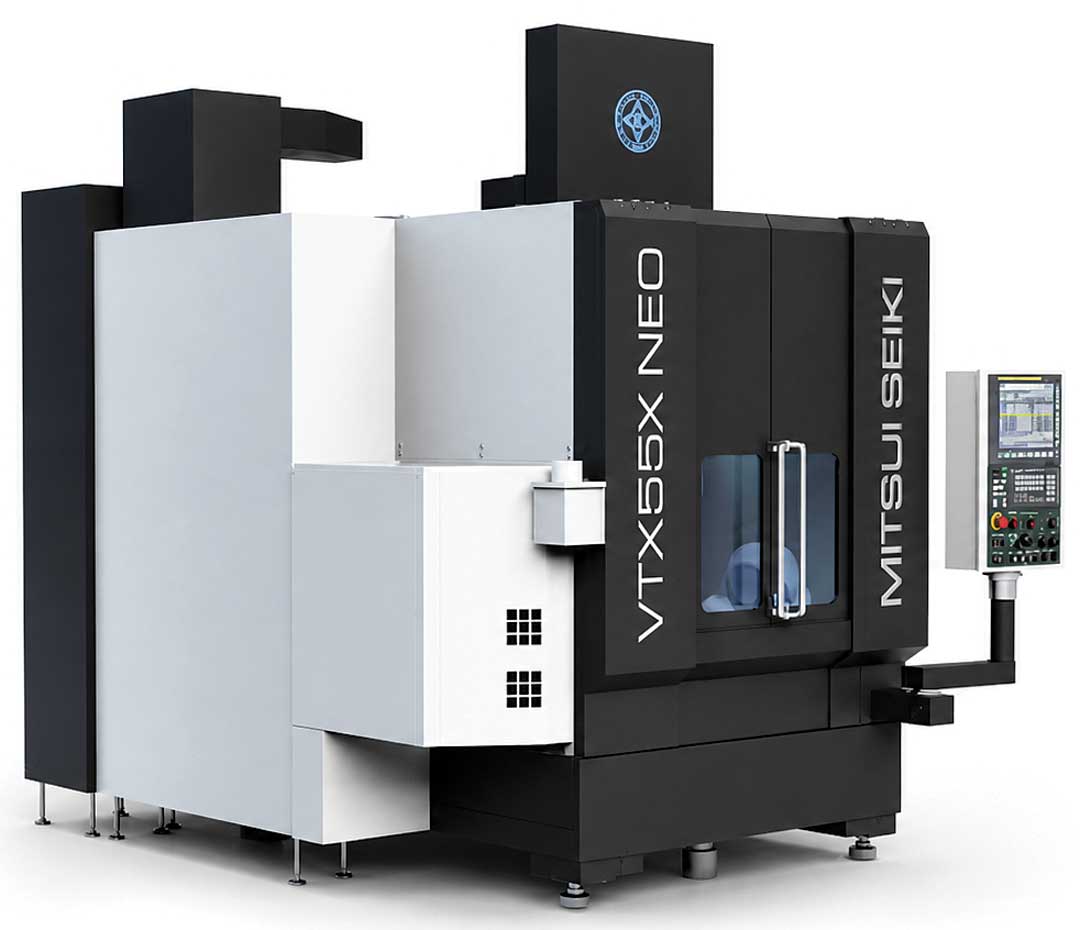

Mitsui Seiki USA has introduced the Vertex55X NEO high-performance VMC with FANUC 31i-B5 Plus control for simultaneous precision 5-axis machining applications.
Designed to machine complex blade geometries, difficult-to-cut ceramics, and mold and die operations, among others, the Vertex55X NEO offers 5-axis configuration with a tilting A-axis and full rotary C-axis for more complete machining operations in fewer set-ups. This includes the use of shorter tools for those difficult-to-reach cavities and undercuts, and better finishes. Its high-speed spindle capability — up to 30,000 RPM — helps to reduce polishing and lead times while at the same time offering advanced thermal stability and +/-0.001 mm positioning accuracy. The FANUC 31i-B5 Plus control provides AI contour control and high-speed processing.
The company noted that integrated automation options, probing technology, and high-speed tool changing capabilities provide mold and die manufacturers with the capacity to achieve highly accurate parts to meet difficult customer deadlines.
The Vertex 55X NEO features a table longitudinal stroke (X-axis) of 550 mm, table cross stroke (Y-axis) of 600 mm, and spindle head vertical stroke (Z-axis) of 500 mm. Roller-type linear guide ways offer the high-rigidity necessary to maintain accuracy, precision, and repeatability. An absolute linear glass scale indicates the exact position of the X/Y/Z axes for accurate repeatability, while an absolute rotary Inductosyn scale performs the same function for the A and C axes. The machine automatically knows its exact position when it is turned on in both instances. Cutting feed and traverse rates range from 0.1-48,000 mm/minute on the X/Y/Z axes to a traverse rate of 40 RPM on the A (tilt) axis with a cutting feed of 30 RPM, on the C (rotary) axis. Manufacturers are now able to scale up their machining processes from slow and controlled feeds for high-precision finishing on those difficult-to-reach sections, such as cavities and deep pockets, to the high speeds required to efficiently rough out large blocks of material for precision contouring applications.
Joe Farkas, National Sales Director, Mitsui Seiki USA, said: "The Vertex55X NEO gives mold and die manufacturers the ability to machine complex geometries with exceptional accuracy and 30,000 RPM performance, significantly reducing polishing and lead times. It is a platform built to help our customers deliver superior quality faster and more consistently."
For more information contact:
Mitsui Seiki USA Inc.
563 Commerce Street
Franklin Lakes, NJ 07417
201-337-1300
info@mitsuiseiki.com
www.mitsuiseiki.com
