Height Gauge with Intuitive Operation

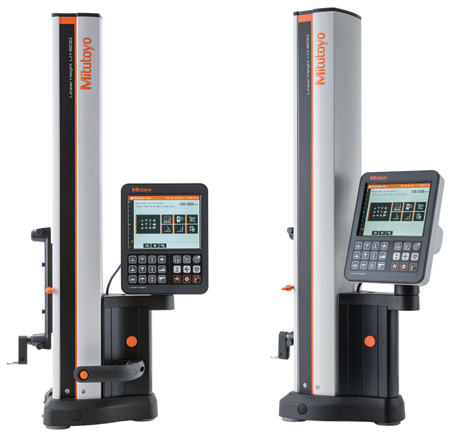

Mitutoyo America Corporation offers the Mitutoyo LH600F/FG Linear High Measurement System. The LH600F is the latest model in the Mitutoyo Linear Height Gage line with several added features and benefits along with enhanced accuracy using a scale unit and guiding mechanism manufactured in the company's Japanese facilities.

The LH-600F now features a touchscreen interface that allows for easy and intuitive operation, allowing users to measure with the press of a button or through touchscreen icons. The rotatable and adjustable display of the LH-600F also allows for use from front and rear orientations as well. There are additional output options, including a Digimatic output that allows data to be sent directly to Excel or SPC software, wired or wirelessly, while maintaining USB and RS232C output capabilities.

Other added features include:

  • A self-check feature can detect dirt or oil on the encoder, helping ensure the instrument is clean and able to provide accurate measurements.
  • Instant changes to units, resolution and delta measurement from the previous reading can now be made.
  • An air bearing system makes it easy to move the height gague around; a semi-float mode allows it to slide more easily while taking measurements, even with heavy parts.
  • Motorized capabilities provide better repeatability and reproducibility along with improved 2D mode to measure angles, bolt hole circles and more.
  • An optional footswitch is available for hands-free repeat measuring of volume parts.
  • Multiple probe options (optional) and probe position is switchable for better perpendicularity and straightness measurements.
  • Accuracy of 1.1+0.6L/600 µm with 0.1 µm/0.5 µm resolution/repeatability.

For more information contact:

Mitutoyo America Corporation

965 Corporate Blvd.

Aurora, IL 60502

630-820-9666 / 888-648-8869

www.mitutoyo.com
