Submerged Wire EDM Provides Large Capacity, Flexibility and Speed
July 1, 2015

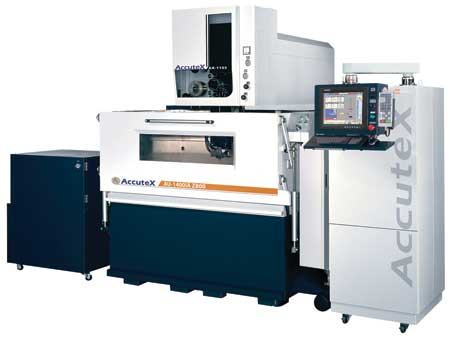

The new AU-1440iA Z800 Submerged Wire EDM from Absolute Machine Tools is engineered to process large as well as smaller parts with accuracy, speed and convenience. The machine's X-axis capacity of 55.11" (1,378 mm) with 39.1" (787 mm) in Y and Z enable it to handle workpieces up to 68.5" x 42.5" x 31.29" (1,712 mm x 1,062 mm x 782 mm) in size.
The machine structure, designed via Finite Element Analysis (FEA), includes a Meehanite cast honeycomb-type base, highly ribbed column mounted with oversized UVZ axis, and a reinforced lower-arm to increase stiffness. To maximize durability, the 5.9" (148 mm) U and V axes are protected in a cabinet located above the working area. All castings are stabilized to help ensure maximum strength, reliable high precision and long durability when machining workpieces as heavy as 7,473 kg (16,440 lbs.). The rigid structure and 20 mm C1 Class U-V ball screws are designed to provide repeatable precision at the high flushing pressures necessary for high-speed cutting.
A precision hardened stainless steel workpiece mounting table offers easy accessibility and is designed to function as a standard clamping system, permitting a wide range of workpieces to be fixtured quickly and accurately. The worktable can also accommodate any commercial clamping system.
AccuteX's exclusive automatic wire threading (AWT) system is engineered to enhance machining speed by accomplishing fast submerged rethreading at the break point. When wire breakage occurs, rethreading takes place without dielectric drainage/refilling, resulting in spark-to-spark times as low as 15 seconds. The system also includes a scrap wire disposal unit.
A 64-bit Widows CE based PC CNC system drives machine axes via closed loop, direct coupled AC servomotors, with 8 millionths resolution confirmed by a Heidenhain linear glass scale feedback system. According to the company, the patented structure of the machine's Hiwin linear guideways reduces up to 90% of friction and vibration to produce accuracy of motion. Resulting positioning accuracy is ±0.00012" and repeatability ±0.00008" in X and Y.
For more information contact:
AccuteX EDM
7944 Innovation Way
Mason, OH 45040
513-701-5550
sales@accutexedm.com
www.accutexedm.com
