Hydraulic Double End Notching Systems

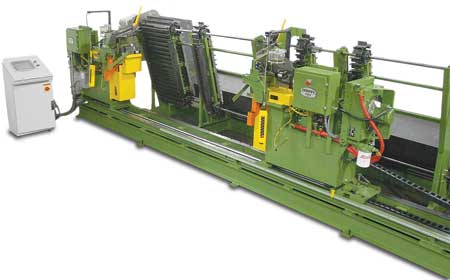

Generation II H237DN-D hydraulic double end notching system shown with optional bundle loader.

INNOVO Corporation's Generation II line of H237DN-D hydraulic double end notching systems for high volume notching applications are capable of producing 90 joints on both ends of tubing or pipe in a single cycle.

The H237DN-D unit has a capacity of 2" Sch. #40 pipe (2-3/8" OD x .154" wall). Units are adjustable to accept tubes ranging from 12" long to the maximum range of the selected unit. Standard models are available for 4', 12', 16', 20' and longer tube lengths.

According to the company, the Generation II line features simplified transfer mechanism of tubing from loader to notch heads and reduced cycle times offering maximum production rates of approximately 1,200 tubes per hour in a single tool unit to approximately 2,400 tubes per hour in a double tool unit.

INNOVO offers options of manual load units, units with a bundle loader and units that can be integrated with a tube mill to minimizing handling, reducing floor space and improving operation efficiency.

INNOVO Corporation manufactures standard and custom engineered tooling and equipment for tube and pipe fabrication applications.

For more information contact:

Ron Bochat

Application Engineer

INNOVO Corporation

2385 United Lane

Elk Grove Village, IL 60007

847-616-0063

info@innov.us

www.innovo.us
