Clamps Lock and Precisely Locate Workpieces

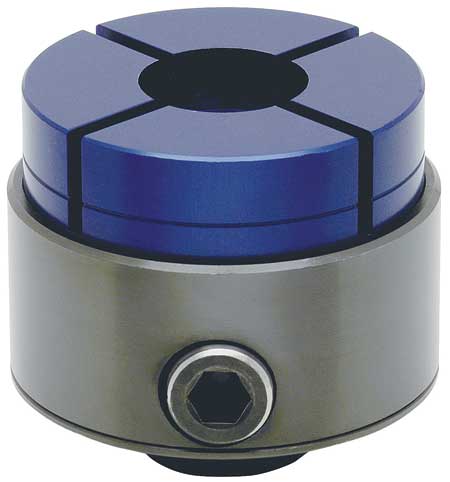

Imao O.D. Clamps from Fixtureworks are suited for holding on the circumference of irregular workpieces.

Fixtureworks, a supplier of workholding components, material handling products, machine tool components and fixturing accessories now offers Imao O.D. holding clamps as part of its workholding and fixturing technologies.

The Imao O.D. clamps, available in up to 90 mm diameter sizes in both round and square styles, allow for holding irregular shapes and those workpieces with a circumference. The four-part aluminum jaws can also be machined to custom fit the part, while the body is made of SAE-1045 alloy steel to provide for a strong and solid base. The clamps allow for part repeatability of ± 0.03 mm and jaw locating repeatability of ± 0.02 mm, while the clamping stroke of each jaw is 0.15 mm, suited for clamping die cast parts, extruded, solid-drawn and prefinished parts to name a few. The clamps come with a diamond pin for body locating.

The shaft and locking screw are made from alloy steel, hardened with black oxide finish. When the locking screw is tightened the central bottom part of the jaw is pulled down. At the same time the four jaw sections, applying equal pressure, tilt toward the center to clamp the circumference of the part. The jaws, also available separately, can be machined to hold almost any shape and many different materials can be clamped. An adapter is also available so that the clamps can be used on a lathe.

To use the O.D. clamps, insert the diamond pin (included) into the body for locating. Secure the body to the fixture with four socket head cap screws. Engage the keyway on the bottom of the jaw. Secure the jaw. Set the locking ring in the jaw. After machining, loosen the locking pin.

Besides the Imao O.D. Clamps, Fixtureworks offers Fairlane Products full line of grippers, rest pads, Swivots swivel/pivoting positioning components, Quick Release ball-lock pins, rollers and bumpers; Kipp rest and riser pads, levers, handles, knobs and hand wheels; Imao manual clamps, supports and stops, risers, T-nuts, sliding mounts, springs, supports, grid plates and blocks; OK-Vise single and double wedge clamp designs; and Mitee-Bite low-profile edge clamps.

For more information contact:

Justin Gordon

Fixtureworks

33792 Doreka

Fraser, MI 48026

586-294-1188 / 888-794-8687

info@fixtureworks.net

www.fixtureworks.net
