OSG Adds to Lineup

OSG USA, INC. has announced additions to the OSG product line up.

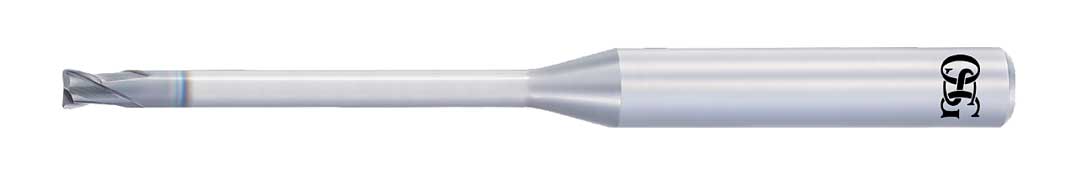

A Brand AE-CPR2-H End Mill Series

The A Brand AE-H Series has been expanded with the release of the A Brand AE-CPR2-H. The A Brand AE-CPR2-H is a series of advanced performance two-fluted long neck corner radius end mills for hardened steels.

The A Brand AE-CPR2-H end mill offers the following features and benefits:

• Two-flute design-Low cutting resistance reduces tool deflection, enabling a high-quality machined surface
• Optimized 3D negative geometry-Balances sharpness and rigidity for enhanced performance
• Flat cutting edge-Designed for bottom surface milling, achieving enhanced results with minimal tool wear while delivering higher precision and a smoother machined surface, according to the company
• Corner radius and shank precision-With a corner radius accuracy of ±0.002 mm and an H4 shank tolerance for secure and stable toolholding.

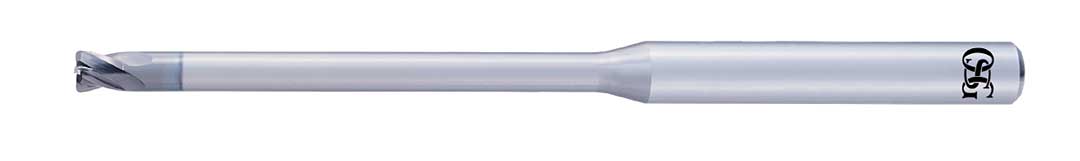

A Brand AE-CPR4-H End Mill Series

The A Brand AE-CPR4-H End Mill series now includes additional sizes. The A Brand AE-CPR4-H is a series of advanced performance four-fluted long neck corner radius end mills for hardened steels.

The A Brand AE-CPR4-H end mill offers the following features and benefits:

• Four-flute design-Achieves high efficiency milling with a four-flute configuration across all sizes in this list
• Spiral gash-For improved chip evacuation and suppression of chatter
• Enhanced index-Suppresses chatter to enable high speed, deep reach milling
• Enhanced corner radius and shank precision-Features a corner radius accuracy of ±0.002 mm and an H4 shank tolerance for secure and stable toolholding.

A Brand ADO-40D, 50D Drill Series

The expanded A Brand ADO-40D and 50D drill series now includes additional sizes. The A Brand ADO is a series of high-performance coolant-fed carbide drills for ferrous and nonferrous materials.

The A Brand ADO-40D and 50D drill offers the following features and benefits:

• OSG's EgiAs Nano Coating Technology-Higher coating oxidation temperature and hardness improve wear resistance
• Wavy form cutting edge design-Sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing
• Internal coolant holes-Coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds.

EXOCARB WXL-EBM End Mill Series

The EXOCARB End Mill Series now includes the EXOCARB WXL-EBM. The EXOCARB WXL-EBM is a series of performance carbide end mills with OSG's proprietary WXL coating.

The EXOCARB WXL-EBM end mill offers the following features and benefits:

• Ultra-fine micro-grain carbide-A hard, wear resistant carbide for wear resistance
• High precision geometry-High accuracy all but eliminates need for benching and rework for moldmakers
• High strength core diameter-Tools utilize thicker core diameters for strength and rigidity
• WXL coating-Higher coating oxidation temperature and hardness improve wear resistance

EXOCARB SEP-EL End Mill Series

The EXOCARB End Mill Series is expanded with the release of the EXOCARB SEP-EL. The EXOCARB SEP-EL is a series of DLC coated carbide end mills for engineering plastics.

The EXOCARB SEP-EL end mill offers the following features and benefits:

• DLC-IGUSS coated-Combines microscopic tool sharpness and tool wear resistance while achieving a good surface finish in a range of plastics, from engineering plastics to super engineering plastics
• Three flute with low helix, specialized for resins-Cutting tool design allows for low cutting forces, reduced heat generation, and burr free machining
• Strict dimensional control with tool diameter tolerances of 0.001" or better-High accuracy tooling designed for the demanding needs of the semiconductor industry
• Cutting edge ground to a point-Resulting in a sharp cutting edge for free machining in resins.

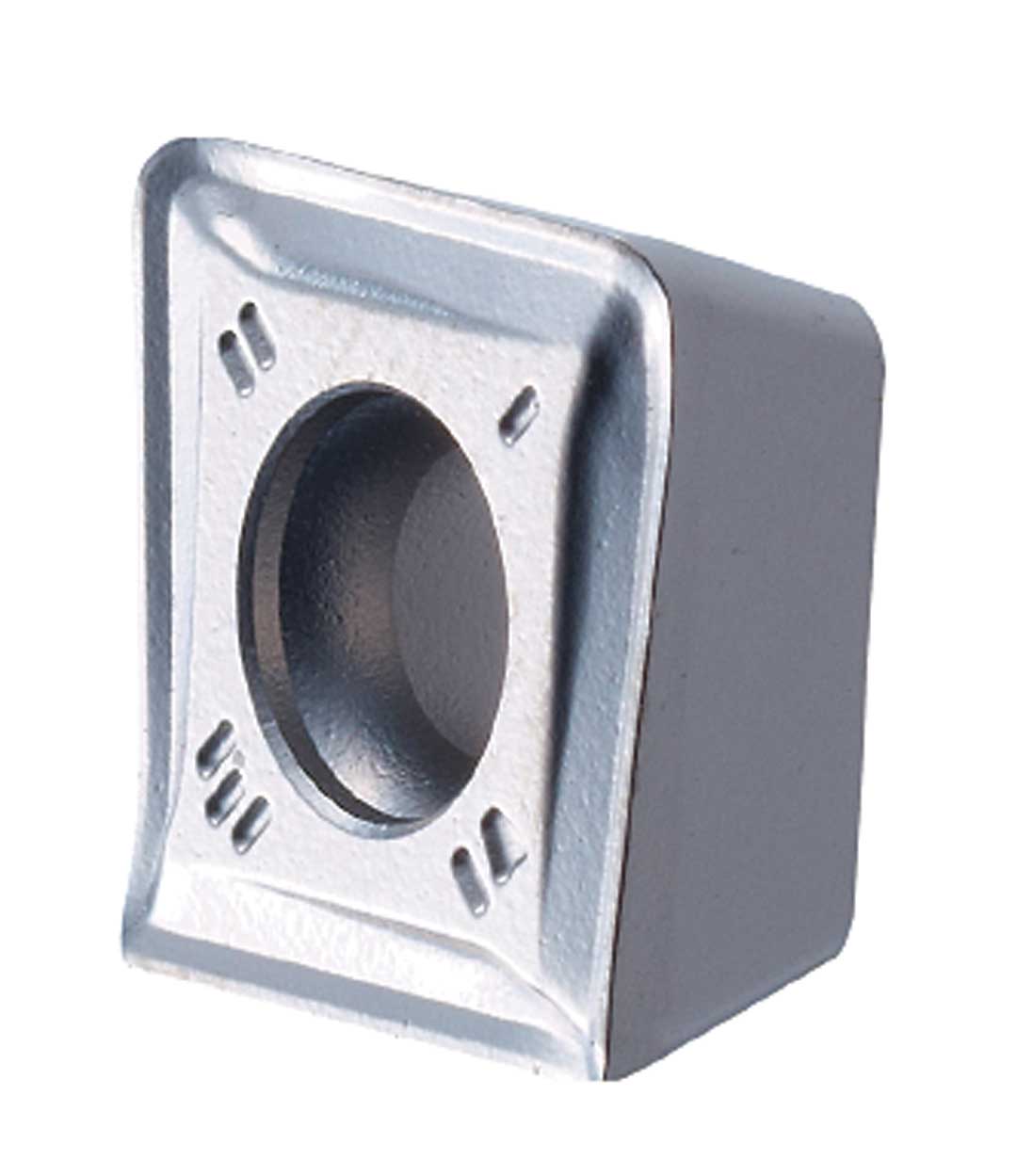

OSG PHOENIX PSF and PSFL Insert

The PHOENIX indexable series is expanded with the OSG PHOENIX PSF and PSFL MCD insert, a 90° indexable shoulder cutter for face milling.

The PHOENIXr PSF/PSFL MCD Insert offers the following features and benefits:

• Square insert with four cutting edges-High performance with long insert life and low cost per edge
• Compact insert size for lighter depths of cut-Enhanced performance in face milling applications
• Sharp 3D chip breaker-Reduced cutting forces
• End mill and face mill styles, inch and metric-Complete offering.

For more information contact:

OSG USA, INC.

620 Stetson Ave.

St. Charles, IL 60174

800-837-2223

info@osgtool.com

www.osgtool.com
