Clamshell Split Frame Machine Bevels, Bores Simultaneously
April 1, 2025
Esco Tool has introduced an I.D. boring module for the COHOG clamshell split frame machine that bolts directly onto the rotating ring to permit beveling and boring simultaneously.

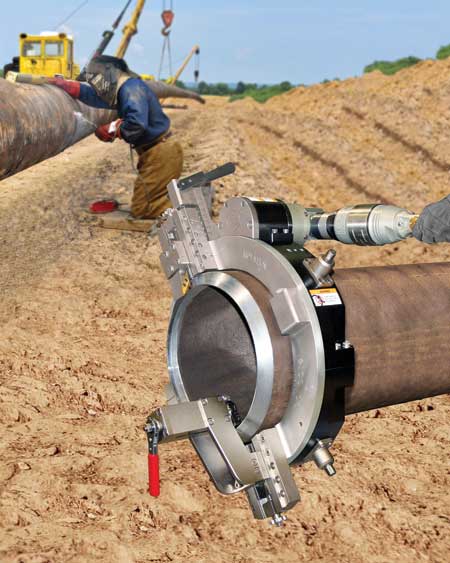

The Esco COHOG Split Frame Machine can now be equipped with a new I.D. boring module that mounts onto the rotating ring to bevel and bore pipe from 4" O.D. up with virtually any angle of bevel and bore depths to 1.5". Utilizing double-edge carbide inserts, this machine has a robust stationary ring machined from 7075 aluminum alloy that is hard coated and supports a custom steel forged, heat-treated and nickel-plated rotating ring.
Easy to set up, the Esco COHOG Split Frame Machine squares itself to the pipe with clamps that each accommodate four different pipe sizes using one set of pads. Suited for use onsite or in the shop, it is offered with pneumatic, electric and hydraulic motors and the I.D boring module has a manually operated feed that allows for precise control of the depth of cut.
For more information contact:
Esco Tool
A Unit of Esco Technologies, Inc.
75 October Hill Road
Holliston, MA 01746
800-343-6926
millhog@escotool.com
www.escotool.com
