Form Drill Systems

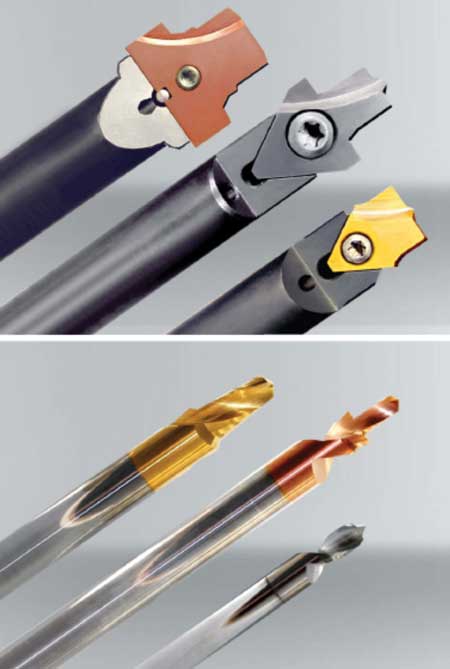

With its PWP and PWP-D insertable form drill system, Schwanog addresses the problem of long set-up times due to the fact that the insert holder stays in the machine during insert changeover. This design allows the center height to stay unchanged.

The insertable carbide tool is ground individually according to customer specifications and can hold a minimum tolerance of ± 0.01 mm and repeatability of 0.02 mm. The form drill systems are available in various carbide grades.

As the insertable PWP and PWP-D form drill systems are limited to a maximum bore diameter of 28 mm and a depth of 16 mm, Schwanog added solid carbide drills to complement its line of form drill products for larger bore sizes and deeper holes. The solid carbide drills are ground individually according to customer specifications and hold a minimum tolerance of ± 0.02 mm.

The efficiency of both systems can lead to cost reductions of 40% or more, according to the company.

For more information contact:

Schwanog LLC

1301 Bowes Road, Ste. A

Elgin, IL 60123

888-870-1055

www.schwanog.com
