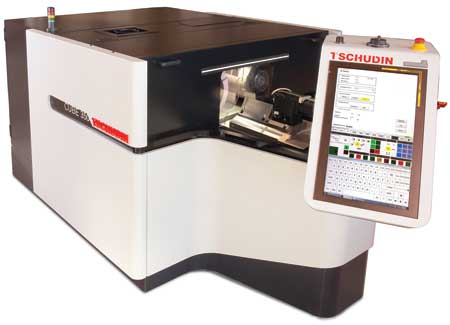

The carbon fiber spindles will initially be installed in the centerless TSCHUDIN CUBE 350 cylindrical grinding machine.

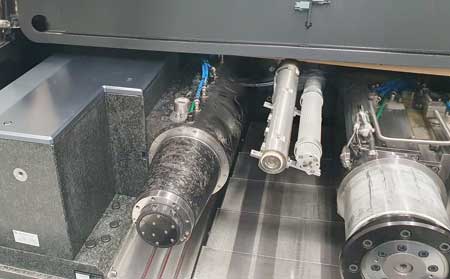

View into the working area of the TSCHUDIN CUBE 350 with built-in carbon fiber spindle.

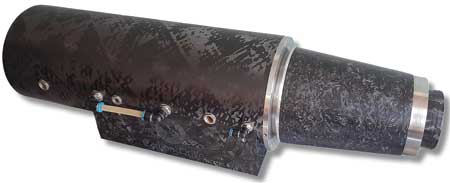

The carbon fiber spindles developed by TSCHUDIN in cooperation with Carbon-Drive GmbH are of particular interest to customers with the highest quality requirements.
"Swiss grinding provider TSCHUDIN offers a real world first: a grinding machine with perfect heat transfer," said Urs Tschudin, shareholder of TSCHUDIN AG. "We have been working consistently for three decades to reduce the heat transfer of our machines to a minimum. With the completely new grinding and regulating spindles made of carbon, we have now put the final piece of the puzzle in place. The CUBE 350 centerless external cylindrical grinding machine is the first grinding machine without heat transfer. With this spindle concept, we are underpinning our status as an innovator and offering our customers a new dimension of accuracy and removal rate."
By minimizing the heat cycle, production with consistently high accuracy is offered. A time-consuming warm-up of the machine, for example, is no longer necessary.
"Even if the machine stands still for a weekend, it can produce immediately within a maximum dimensional deviation of 1 µm," said Tschudin. "What is more, all parts can be produced to the exact dimensions, even with multitrack grinding-the grinding wheel and regulating wheel remain parallel because thermal displacement is prevented. This allows the CUBE 350 to work autonomously for a very long time as well as unmanned shifts."
Tschudin continued, "The high grinding quality with full grinding gap coverage was already a quality feature of our machines. With the carbon spindles, we are further optimizing this aspect and pushing it to the maximum. The introduction of carbon spindles is the final step in a decades-long development process. Tschudin has been using linear motors for 30 years. More than 25 years ago, machine beds made of solid natural granite were used, which only heat up extremely slowly due to their large dimensions and inertia. In a further step, the grinding spindle slides were also designed as granite blocks-the vertical stop surface for the spindles led to a drastic reduction in heat transfer. On the ecoLine 400, a spindle made of Invar that was implemented 10 years ago has ensured a 10% reduction in heat transfer. The carbon fiber spindles, for which Tschudin has applied for a patent, have now reduced the heat transfer to an absolute minimum."
The carbon fiber spindles developed in collaboration with Carbon-Drive GmbH have been tested and adapted for more than six months with promising results.
"How materials react to heat has a major influence on precision manufacturing," reported Nikolas Ernst, Head of Design at TSCHUDIN AG. "The temperature resistance of carbon fiber is particularly high-carbon spindles therefore prevent thermal expansion in the machine. They are more dimensionally stable and have a higher bending stiffness, which means they can run at higher in-feeds, which in turn means higher cutting performance. In a series of tests, the carbon spindles have proven to be between 10% to 20% more effective than steel spindles."
Carbon-Drive GmbH, based in Weiterstadt, in Germany, is TSCHUDIN's expert and exclusive development and design partner for carbon fiber spindles in the centerless grinding sector. Carbon-Drive emerged from a research project at the Technical University of Darmstadt. Co-founder and Managing Director Martin Klimach explained: "Spindles made of carbon fiber have various advantages, first and foremost minimal thermal expansion. Depending on the type of fiber and fiber orientation, we can produce carbon fiber spindles with different properties and thus respond to a customers' process requirements."
Tschudin explained that the CUBE 350 equipped with carbon fiber spindles is particularly interesting for manufacturers who have the highest requirements in terms of quality and precision. "The more precisely parts have to be manufactured, the more interesting the grinding machine with optimum heat transfer becomes," said Tschudin. "This is because we can offer real added value here due to the greater dimensional stability and higher drive power."
The TSCHUDIN CUBE 350 is the latest Tschudin centerless grinding machine that is designed to produce parts up to 20 mm in diameter and to plunge grind parts up to 150 mm long. It is also equally adept and thorough feed grinding of parts. It can be equipped with various automatic loading options and pre and/or post process gauging. The CUBE 350 offers the best possible efficiency with a small footprint. The change of the grinding and regulating wheels can be done in just six minutes and the next series of workpieces can then be produced seamlessly. The compact centerless grinding machine has a base of just 2.60 m x 1.70 m and has been developed specially for machining small components. The machine can be operated from both the left and the right side.
The standard version of the CUBE 350 will continue to be equipped with steel spindles. The carbon spindles are available as an option.
