Tube Laser Cutting Machine

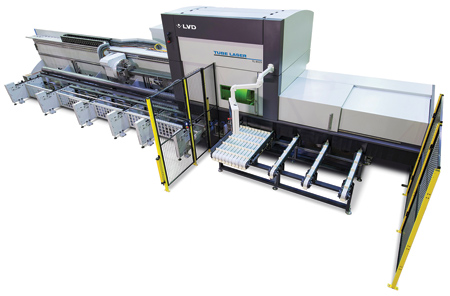

LVD Company nv has introduced the TL 8525 to its line of tube laser cutting machines. The new generation tube laser comes equipped with a number of high-performance features to optimize tube cutting for complex applications.

With a large 27.8' (8,500 mm) infeed length, the TL 8525 can process tubes up to 9.8" (250 mm) round or square. Standard machine features include a 45° 3D tilt-axis cutting head for beveling, six-position front loader and a wide X-axis cutting head range of 3.9' (1,190 mm) to maximize material usage.

Built for high productivity, the TL 8525 can process tube lengths of 27.8' (8,500 mm), a maximum part length of 9.8' (3,000 mm) and can clamp and cut tubes up to a diameter of 9.8" (250 mm). A 400 mm Z-axis permits the cutting of larger profiles.

The welded steel structure provides high rigidity and dynamics. The pre-mounted chuck and steady rest facilitate quick and easy machine installation and startup. The TL 8525 maintains the compact footprint of other TL models and offers the advantage of accessibility on all sides of the machine. Because loading and unloading is handled on one side, the machine can fit in a small space or against a wall.

A 45° 3D tilt cutting head is standard. The multi-axis cutting head delivers high-precision bevel cutting in round, square, rectangular and irregular-shaped tubes; cuts complex profiles and channels; and can be used for weld preparation cuts in thick-walled tubes.

A six-position front loader, also a standard feature, is a semi-automatic loading device that provides a high level of material loading flexibility. It handles up to six tubes and offers six positions of even the largest diameter 9.8" (250 mm) tubes. The system can be loaded with different types of tubes in different sizes and can be interrupted during processing to add a new tube. "Unlike a bundle feed system, there is no waiting to rebind the bundle in the loader, remove it from the machine and then reload a new bundle," said a company spokesperson. The flexibility of material loading efficiently handles the needs of both small batch and long-run production.

A 3.9' (1,190 mm) X-axis cutting head range permits processing along a greater length of the tube, including behind the steady rest unit for less material waste.

Other key features include a programmable table in the outfeed zone. The servo-controlled table features a tilt function for smooth part release and is integrated to a 3 m part evacuation conveyor. The conveyor uses multiple compartments to securely separate and hold parts-even round or longer tubes-as they move along the conveyor.

The TL 8525 incorporates a high degree of automation with automatic tube loading, automatic tube centering and automatic set-up and adjustment of the chuck and steady rest. A high-power fume extraction system integrated to the chuck automatically removes approximately 4,000 cubic meters of fumes hourly from the cutting area.

The TL 8525 comes equipped with a 2 kW IPG fiber laser source capable of cutting a range of ferrous and non-ferrous materials. A 4 kW laser source is optional.
