Solid Carbide Thread Mills

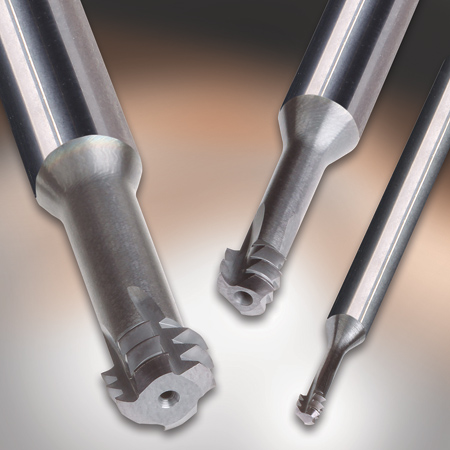

Emuge Corp. has introduced advanced Threads-all ZGF-S-Cut solid carbide thread mills featuring multiple teeth, a helical flute form and multi-layer TiAlN T46 coating. "The new ZGF-S-Cut thread mills are designed to increase tool life over 10 times more than conventional tools and produce precise threads in exotic materials including Inconels, nickel based superalloys, monel, titanium, 420 stainless steel and more," said an Emuge spokesperson.

"To efficiently thread challenging, expensive materials we are pleased to offer our new ZGF-S-Cut thread mills," said Marlon Blandon, Thread Milling Product Manager, Emuge Corp. "The new thread mills are an ideal solution when threading Inconel and other high temperature alloys because the heat is carried away during chip evacuation and does not stay with the part. The new tools are excellent for producing finer threads in aerospace applications such as engines, connecting rods and landing gear, as well as in other components comprised of exotic materials."

For increased tool life and productivity, the thread mills have multiple teeth, the first acting as a rougher and the next two teeth performing finishing. By dividing functions into three cutting edges, speeds and feeds can be increased, and threads can be produced in a single pass. A 10° left-hand helical flute form and chamfer geometry combine to optimize chip evacuation in the forward direction and add strength to the cutting teeth for enhanced tool life and process security. For increased tool strength, ZGF-S-Cut thread mills have multiple flutes.

The tools are available in 2xD lengths, have coolant-fed options starting at .25" diameter, and one tool easily makes STI threads for both through and blind holes. ZGF-S-Cut thread mills are offered in inch sizes ranging from No.2 or M3 through 7/16 or M10.

The entire Emuge Threads-all ZGF program of premium sub-micro grain carbide thread mills encompasses solutions for the production of internal threads from No. 0-80 (M1) to 3/4-16 for demanding industries using difficult materials such as stainless steel, titanium and Inconel. Coolant fed options are available starting at the 5/16" diameter size. "Available in 2xD and 3xD lengths in both miniature and standard thread sizes, the Threads-all family of thread mills provides high quality, dependable solutions for the toughest applications with full bottoming threading within one pitch," said the spokesperson. Threads-all tools provide total control over pitch diameter limits including 2B, 3B, 3BG and all oversize variants. Single plane and multiple plane tools are offered.

For more information contact:

Marlon Blandon

Emuge Corp.

1800 Century Drive

West Boylston, MA 01583

800-323-3013 / 508-595-3600
