LXE300 Linear Light Series
June 1, 2018

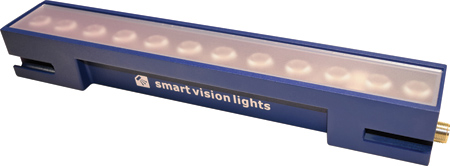

Smart Vision Lights, a designer and manufacturer of high-brightness LED lights for industrial applications, has introduced its brightest linear light, the LXE300.
The LXE300 series - designed to deliver up to 100,0000 lux, features a metal housing and includes Smart Vision Lights' advanced built-in multi-drive driver, allowing the light to operate continuously or in OverDrive strobe mode. The multi-drive also protects the LEDs from premature degradation and failure caused by excessive heat by regulating the current delivered to the LEDs and by limiting their duty cycle.
Other advanced features include the ability to connect up to six lights directly (end to end with no spacing between the lights) to create uniform-output, long linear lights for a fraction of the cost of a monolithic light. Users can also daisy-chain up to six LXE300 lights using a locking jumper cable to support different multi-light configurations.
The industry-standard 5-pin M12 connector makes for simple wiring, since external wiring to a driver is unnecessary, and the 1-10 V DC analog control line gives the user total control over intensity when running the light in continuous operation. The LXE300 also offers over-current protection, as well as PNP and NPN strobe input. The light is recommended for bright field, dark field and direct lighting applications.
For more information contact:
Smart Vision Lights
2359 Holton Road
Muskegon, MI 49445
231-722-1199
www.smartvisionlights.com
