OmniGrip Vulcanized Collet Systems
February 1, 2014

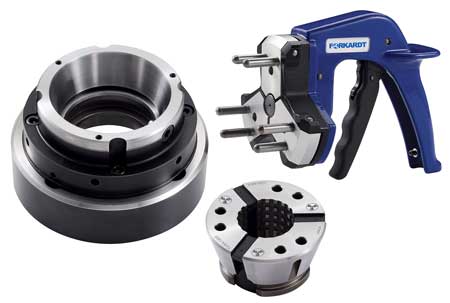

Forkardt OmniGrip Collet Systems are flexible, sealed collet heads designed to interchange quickly and are available with spindle mounts for most brands of CNC lathes.
"With an accuracy of .0004 inch TIR on the A and D styles and a .0008 inch TIR on the DL style, the OmniGrip falls in the 'special accuracy' collet classification," said a company spokesperson. "These systems achieve the same gripping capability as conventional collets while using less draw bar force.
"Vulcanized rubber bonds the hardened, chrome-nickel steel collet sections together providing elasticity for repeated opening and closing of the collet without deterioration. A manual wrench can be used to compress the collet providing quick changeover in seconds instead of minutes. The collet head has a gripping range of ±.020 inch (.5 mm) of its nominal size to allow variation in bar stock without having to change the collet. True parallel clamping minimizes stock push back that could create inconsistent part lengths. Purchase one spindle mount and interchange collet heads from job to job. Forkardt OmniGrip collet heads are fully interchangeable with other models.
"An emergency collet can be kept on hand for just-in-time machining when the proper size hardened collet is not in the tool drawer. The taper and collet seat of an emergency collet are hardened while the I.D. and the face of the collet head are soft. A face boring ring will hold the collet in nominal position for boring to size. Emergency collets are reusable. Standard collets, ordered to size, are stocked in round smooth, round serrated, hex smooth, hex serrated, square smooth, emergency and S-master style collets. Square sizes are made to order.
"The OmniGrip Collet Systems are available in 42, 65 and 80 mm sizes and are ideal for machines experiencing multiple changeovers daily and where stock variations occur. When using a Forkardt OmniGrip system, it takes less than 10 seconds to change a collet. Set-up time is drastically reduced when compared to 191 seconds to change three jaws on a power chuck or 79 seconds to change a collet in a standard collet chuck. Test results from repeated collet actuation indicate a highly durable, fully sealed gripping solution."
For more information contact:
Forkardt
2155 Traversefield Drive
Traverse City, MI 49686
800-544-3823
sales@forkardt.us
www.forkardt.us
