Automatic Sawing System
February 1, 2014

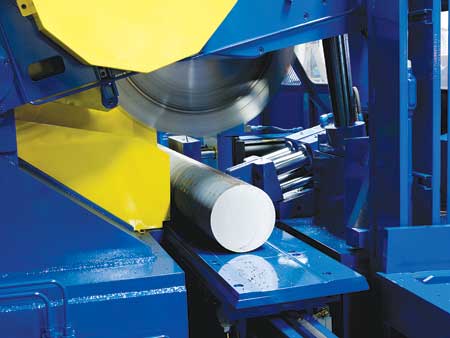

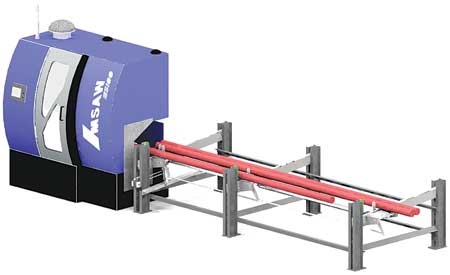

Advanced Machine & Engineering Co. (AME) offers the Amsaw 100 high-performance automatic sawing system. "Intended to provide fast and economical cutting of ferrous and non-ferrous material, it features operator-friendly controls and failure diagnostics," said a company spokesperson. The standard model includes automatic bar loader, diverter chute to separate trim cut and tail ends and cut bars to length as programmed on an LCD panel.
According to the company, features of the Amsaw 100 include:
- High cutting rates up to 150 square IPM
- High accuracy +/- .002"
- Economical cost, as low as $0.0017 per square inch
- Dry cutting, no coolant required
- Extended tool life using cermet or carbide tipped blades
- Thin body blades with minimum material loss of .090"
- 14" maximum diameter saw blades, cutting maximum stock size of 4.0"
- Heavy-duty construction and 15 HP spindle drive motor.
An available option for the Amsaw 100 will automatically correct cut length in case of bar size variations and weigh parts. The Amsaw 100 can be designed and built to customers' specific requirements. The Amsaw line covers a material cross section ranging from .75" to 24.0".
For more information contact:
Advanced Machine & Engineering Co.
2500 Latham St.
Rockford, IL 61103
815-316-5277
info@ame.com
www.ame.com
