Tube Bending Innovations

Unison Tube LLC will present a number of innovative tube manipulation technologies at FABTECH. Unison machines on show at FABTECH booth D41930 will include an all-electric Unison Breeze 100 mm (maximum tube diameter) multistack tube bender and one of the company's manually operated, CNC-controlled EvBend 1000 models.

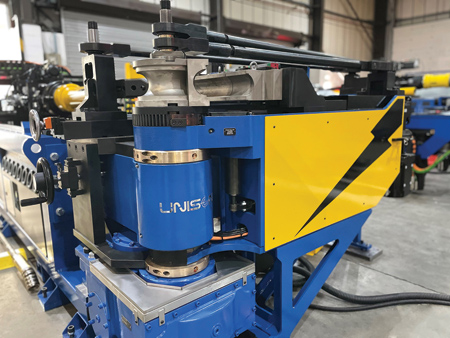

All-Electric Unison Breeze 100 mm

The 100 mm Breeze offers rapid set-up, fast tooling changes, increased power, rigid mechanical design and all-electric control for right-first-time repeat sub-contract work, or immediately after producing a single trial part. These features make it suited for businesses specializing in small batch production runs. Equipped with Unison's recently upgraded Unibend software, all-electric Breeze machines also offer cycle time speed improvements in the region of 25% compared to earlier models and incorporate new teach routine and simulation features.

Unison EvBend

Unison's EvBend 1000 is a high-precision 3-axis machine that was developed to reduce the entry cost to precision rotary draw tube bending. The machine combines manually operated feed, tube rotation and bending force with CNC-controlled braking on the carriage feed, rotation and bend arm axes. Typically used for low-volume, high-accuracy production and prototyping, Unison EvBend machines provide accurate and economical multiplane bending. Two models are currently available: the EvBend 1000 for bending tube of up to 16 mm in diameter, and the EvBend 2000, a machine featuring power-assisted operation and capable of bending tube of up to 50 mm in diameter. The EvBend CNC control includes a PC-based 15" touchscreen and is capable of processing up to 100 bends per component. Unison EvBend machines are used across the aerospace and motorsport sectors for bending precision components.

For more information contact:

Unison Tube LLC

240 Eastwood Drive

Danville, VA 24540

828-808-4286

sales@unisonltd.com

www.unisonltd.com

FABTECH Booth D41930
